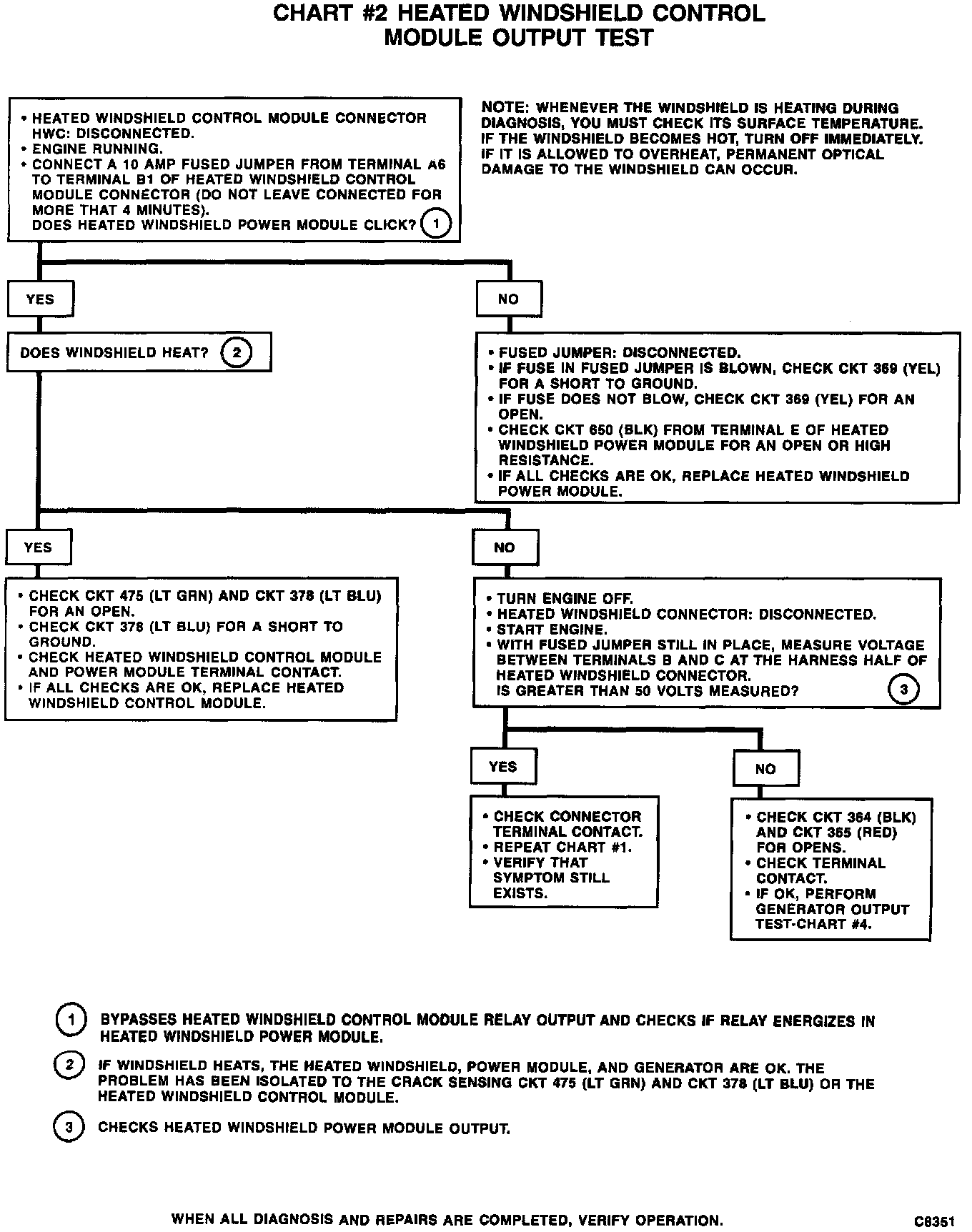

Chart #2 Heated Windshield Control Module Output Test

Chart #2 Heated Windshield Control Module Output Test:
