Compressor Controls

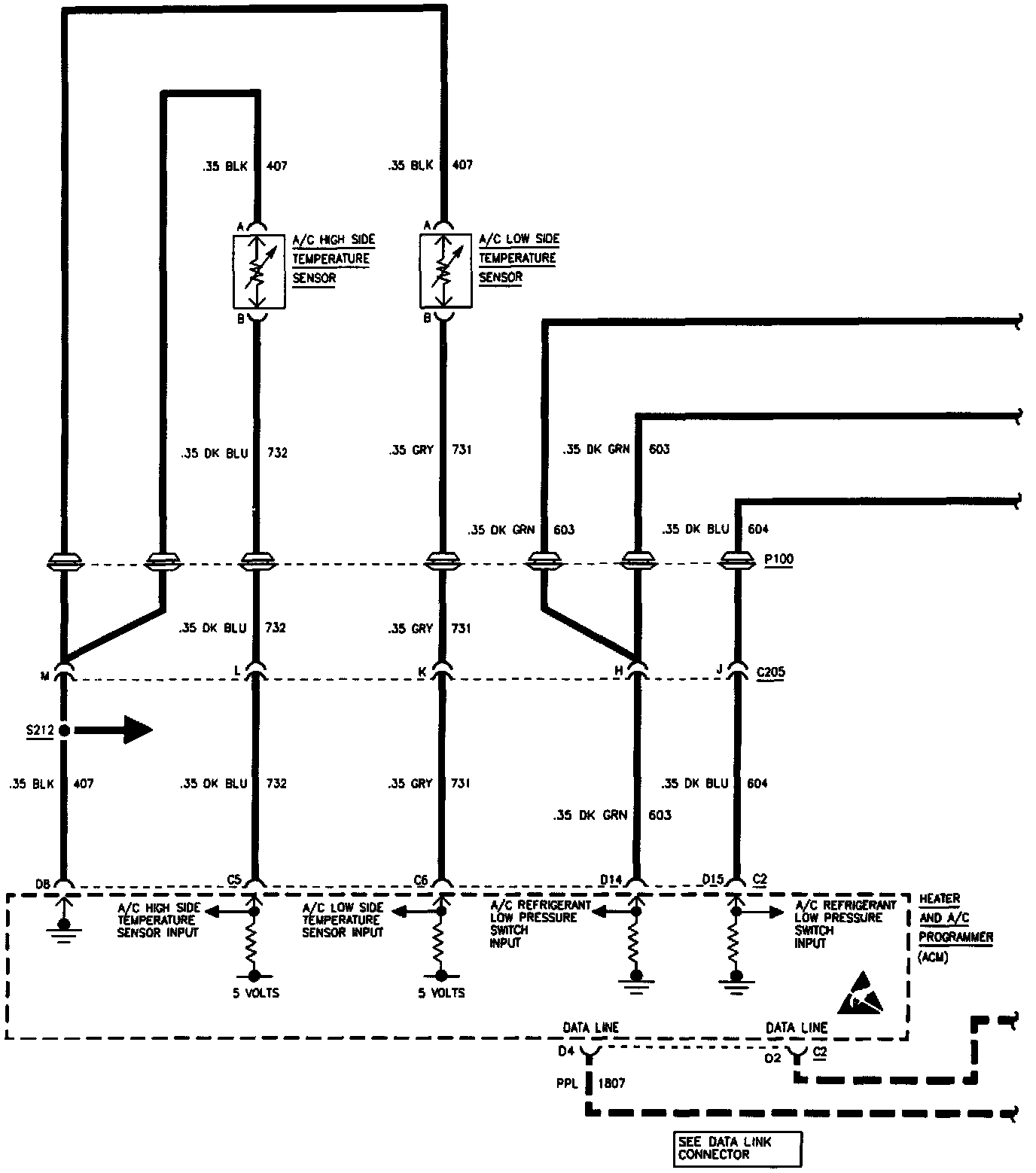

Air Conditioning: Compressor Controls (Part 1 Of 2):



Air Conditioning: Compressor Controls (Part 2 Of 2):
