Home >> Cadillac >> 1998 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Windows >> LH Front Side Door

LH Front Side Door

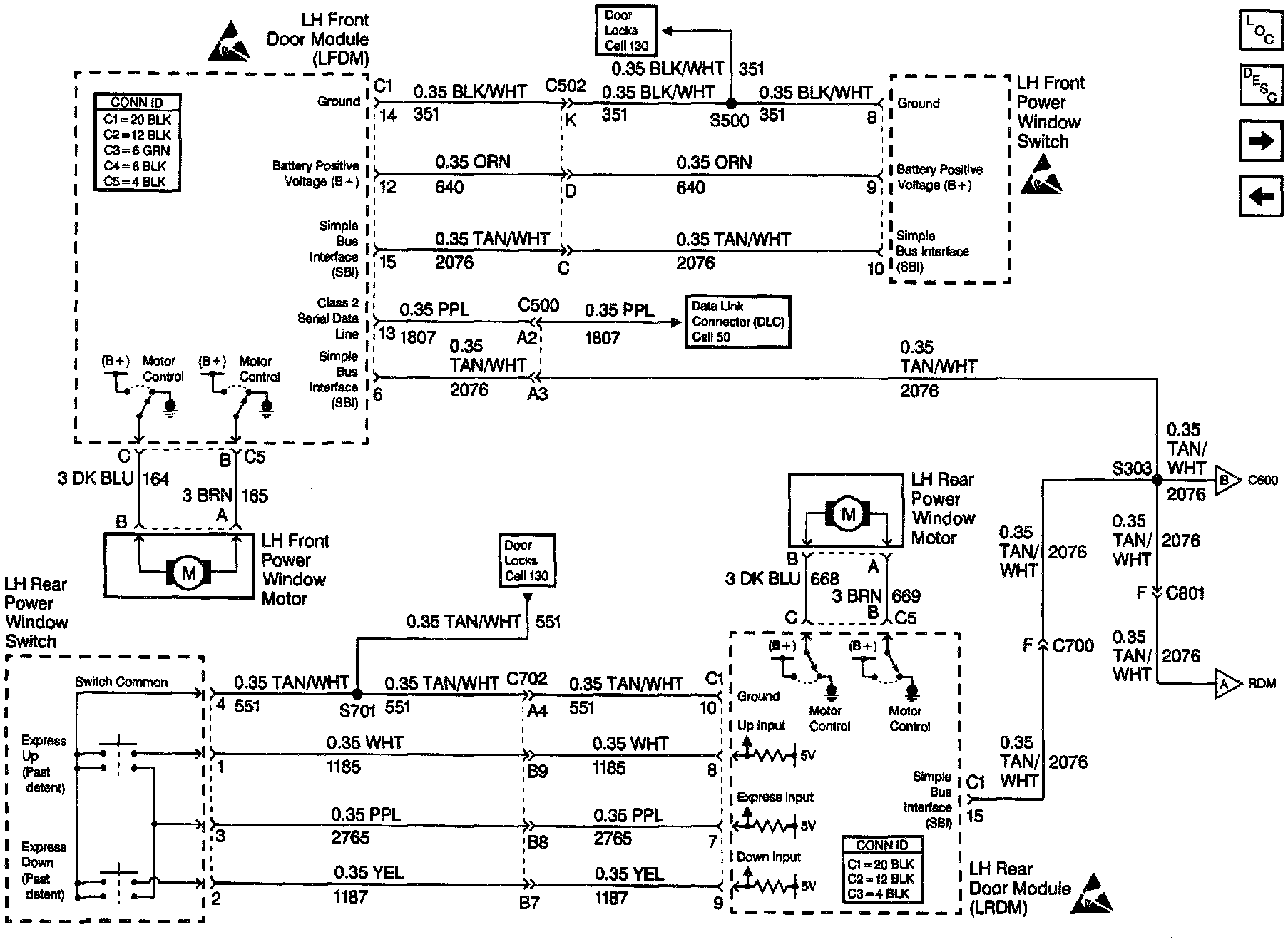

Power Windows Schematics: LH Power Windows:
