Cruise Control Cable Replacement
REMOVAL PROCEDURECruise Control Cable Replacement: Removal Procedure:

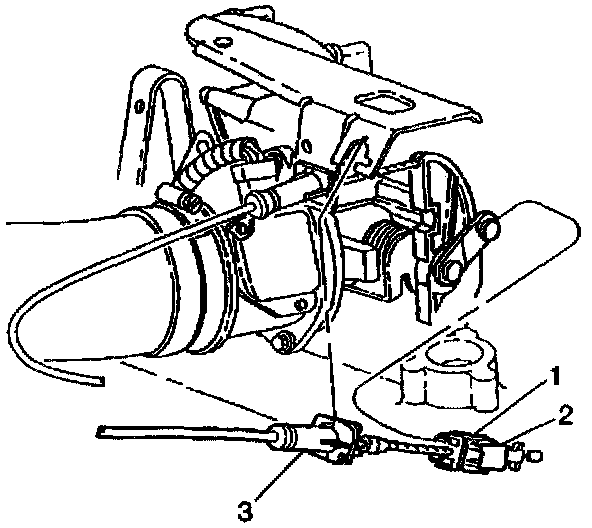

1. Remove the cruise control cable at throttle body cam (1) and throttle body bracket (3).
Cruise Control Cable Replacement: Removal Procedure:

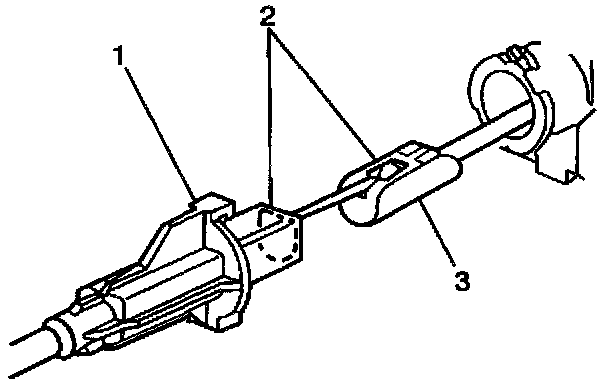

2. Remove the cruise control cable (1) from cruise control module connector (3).
Cruise Control Cable Replacement: Removal Procedure:

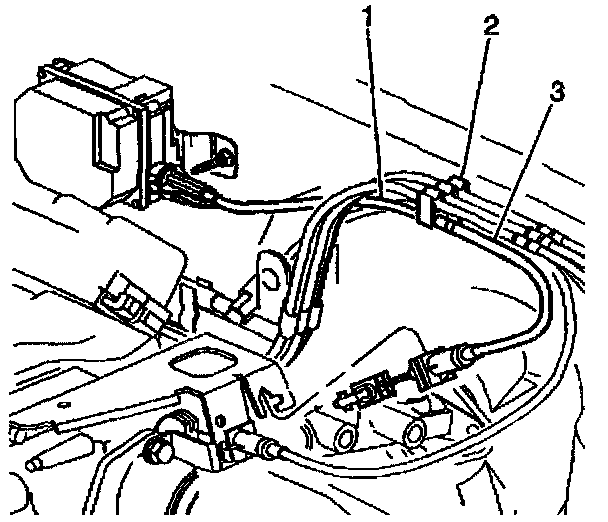

3. Remove the cable (1) from retainers (2).
INSTALLATION PROCEDURE
Cruise Control Cable Replacement: Installation Procedure:
IMPORTANT: Note cable routing and retainer position for reference during installation.
1. Install the cruise control cable (1) to cruise control module.
Cruise Control Cable Replacement: Installation Procedure:

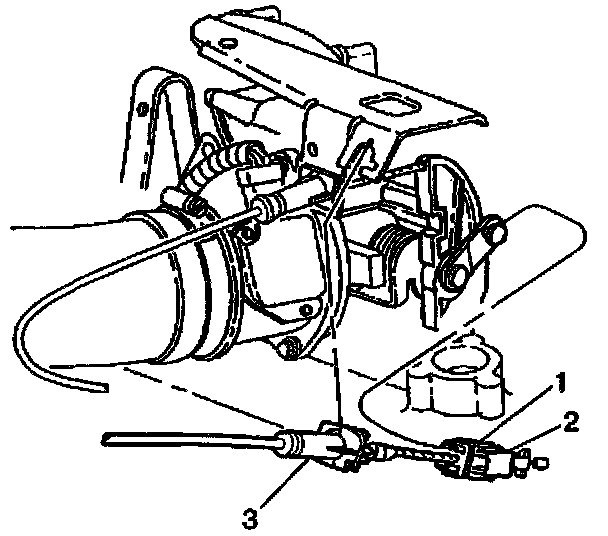

2. Install the cable to throttle cam (1) and throttle body bracket (3).
Cruise Control Cable Replacement: Installation Procedure:
3. Install the cable (1) to retainers (2).
4. Adjust the cable. Refer to Cruise Control Cable Adjustment. Cruise Control Cable Adjustment
