Overhead Console

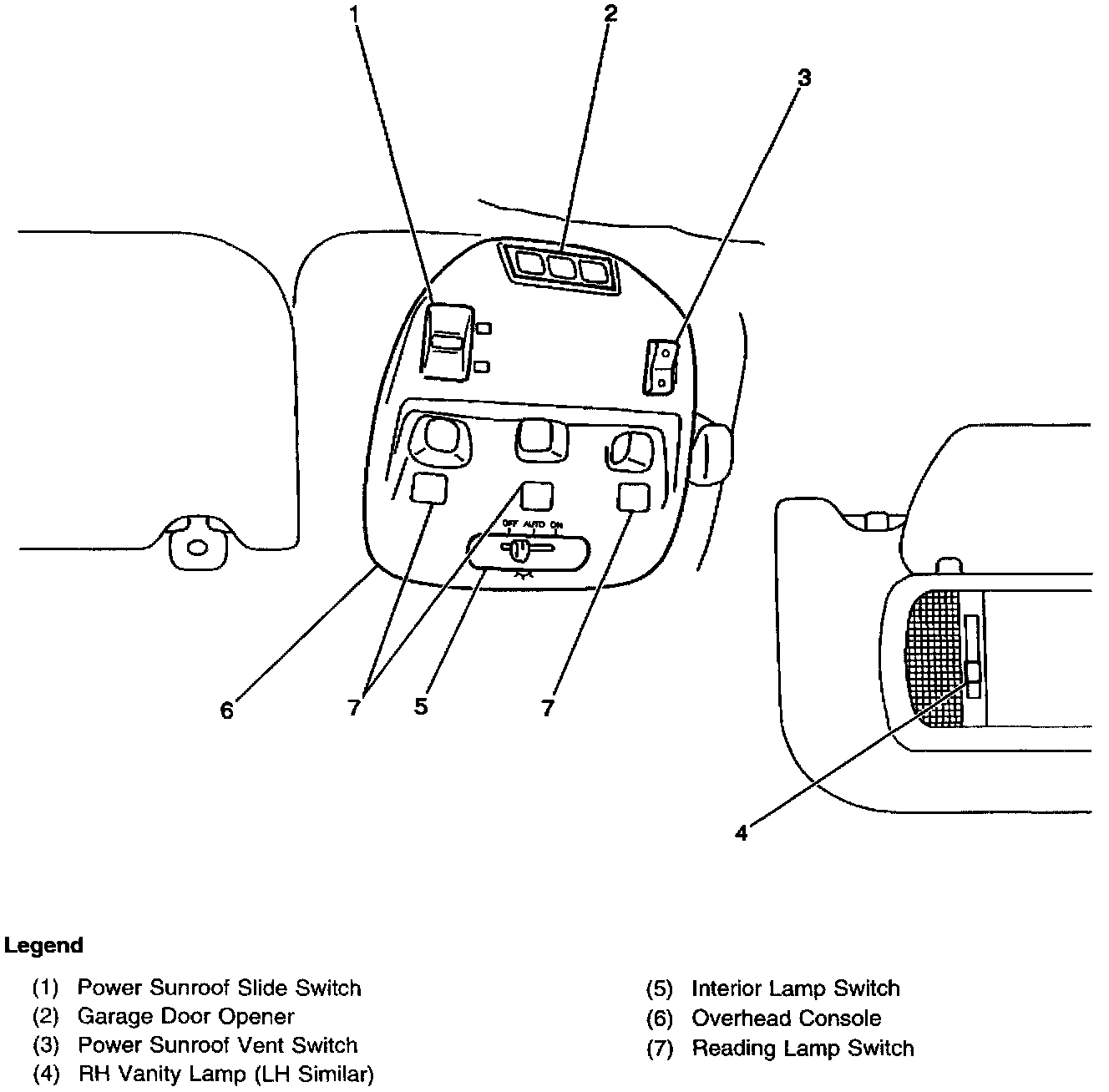

Overhead Console And Components:

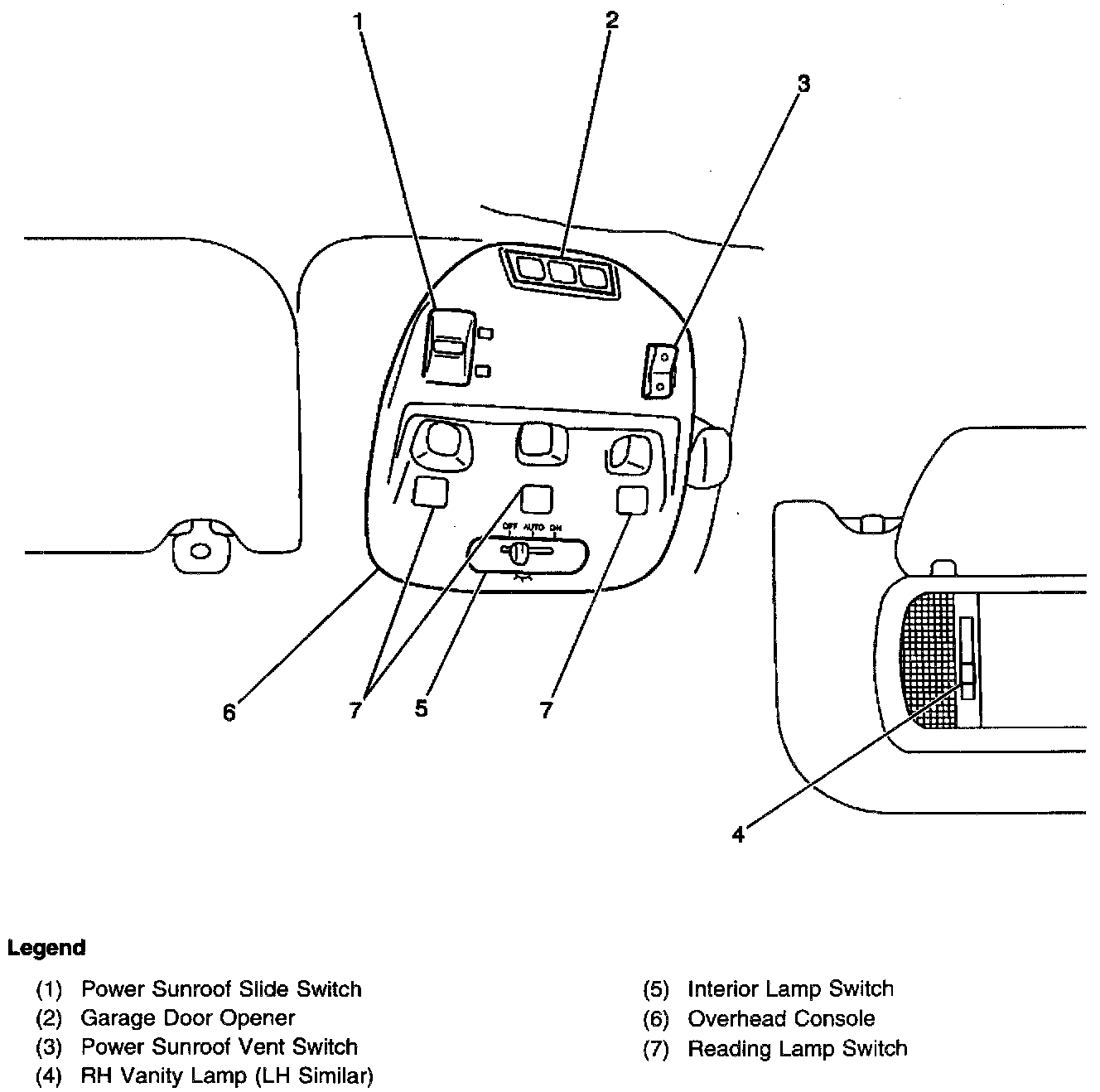

Overhead Console And Components:





Center front of the headliner, above the rearview mirror
