Alarm Module, (Vehicle Antitheft)

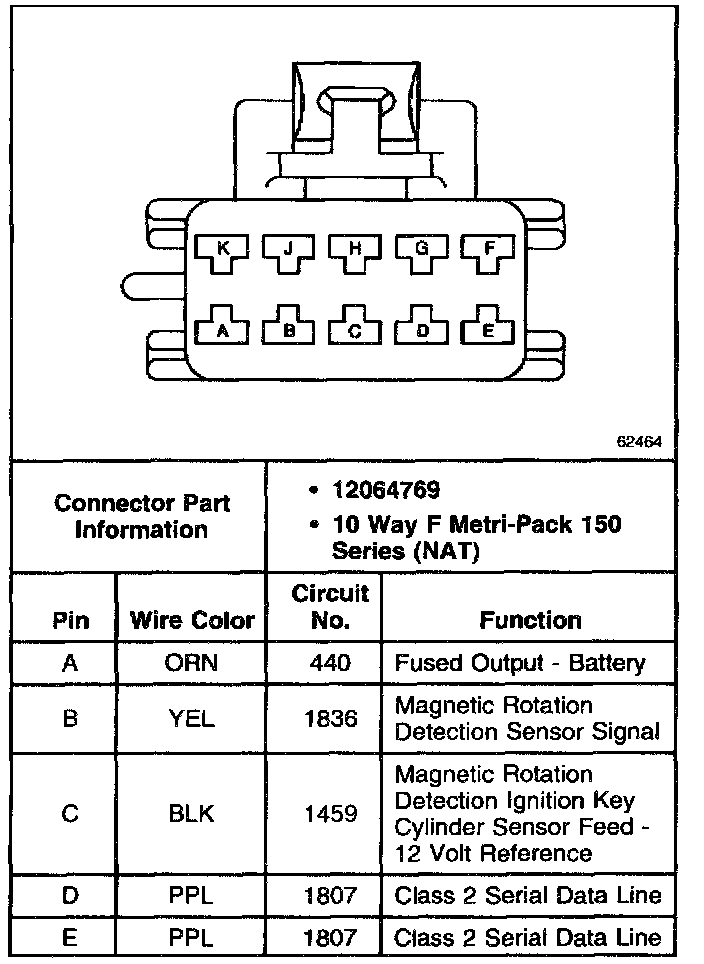

PASS-Key(R) Theft Deterrent Module:

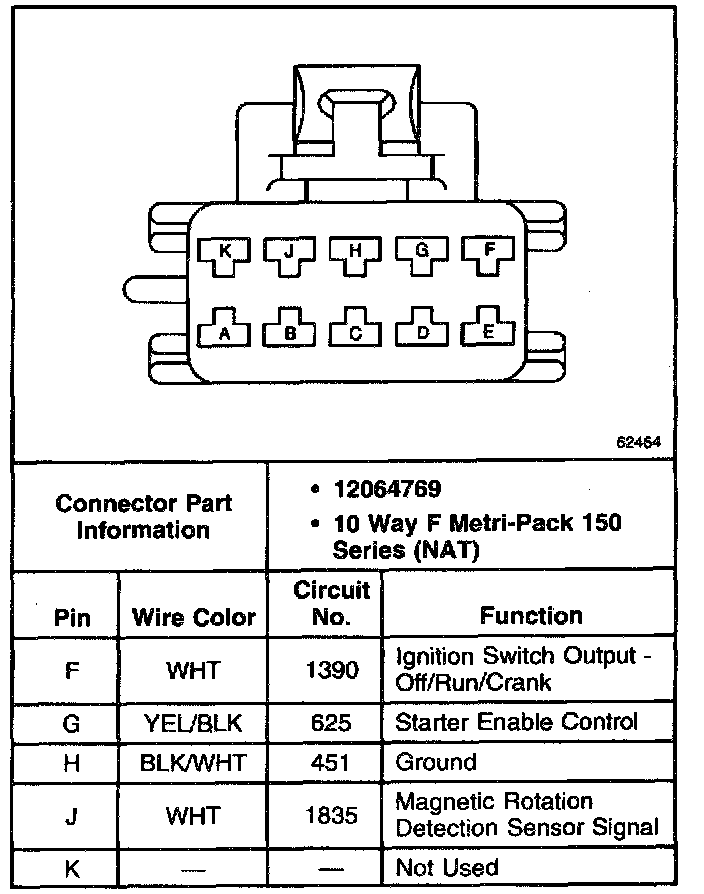

PASS-Key(R) Theft Deterrent Module:
