Home
>>
Cadillac
>>
1998
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
System Diagram

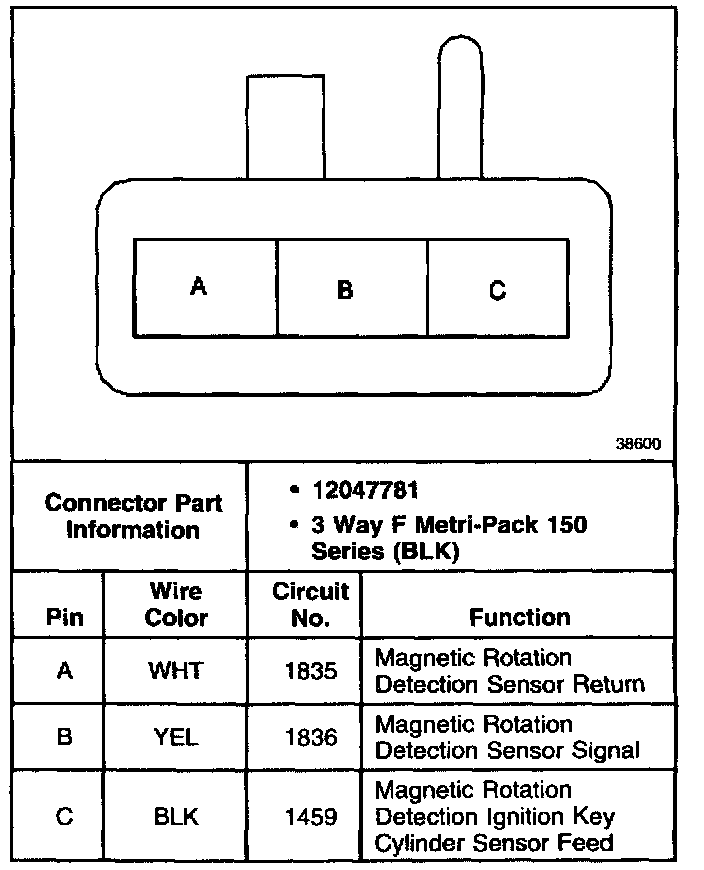

PASS-Key(R) Reader Exciter:
