Cellular Telephone Module

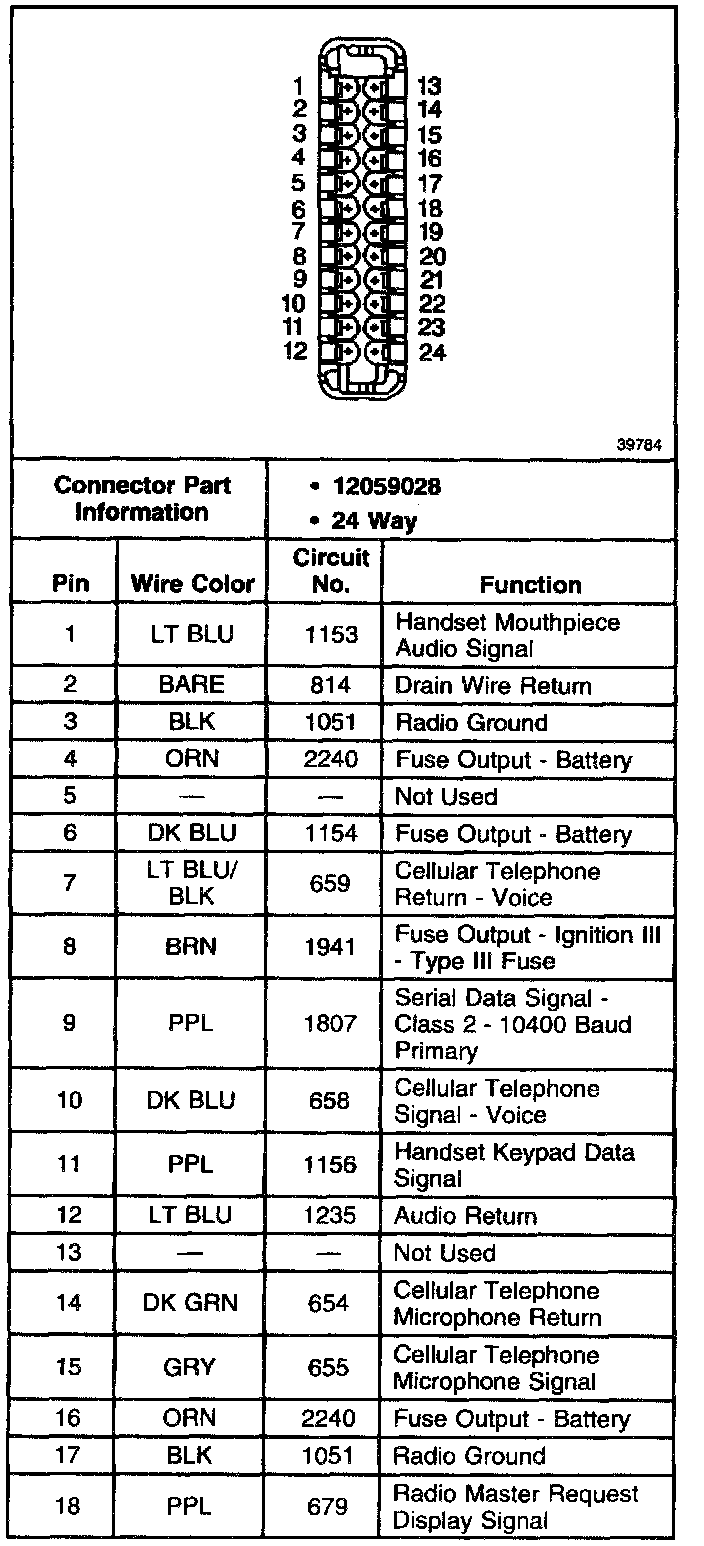

Cellular Telephone Module (Part 1 of 2):

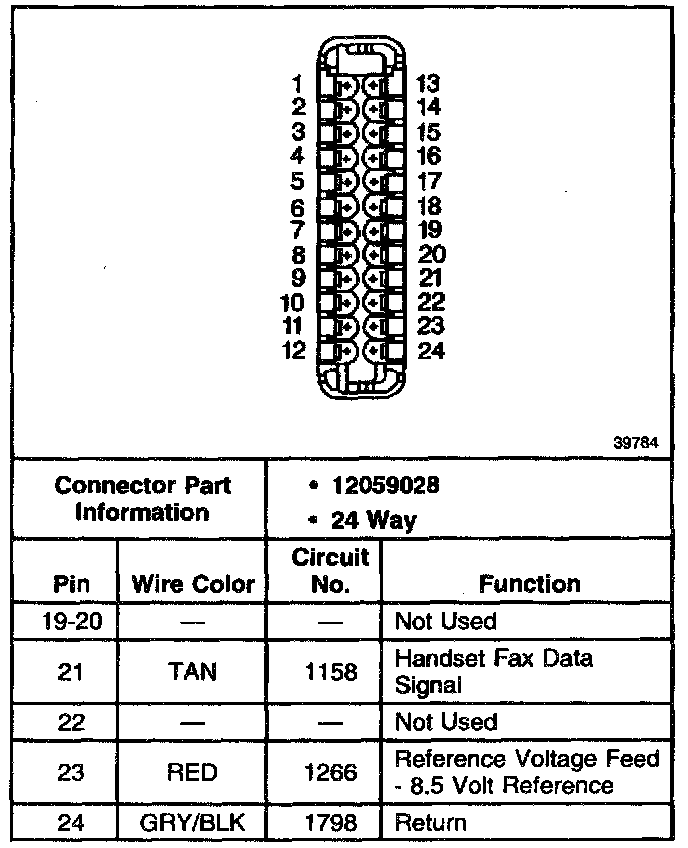

Cellular Telephone Module (Part 2 of 2):
