Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

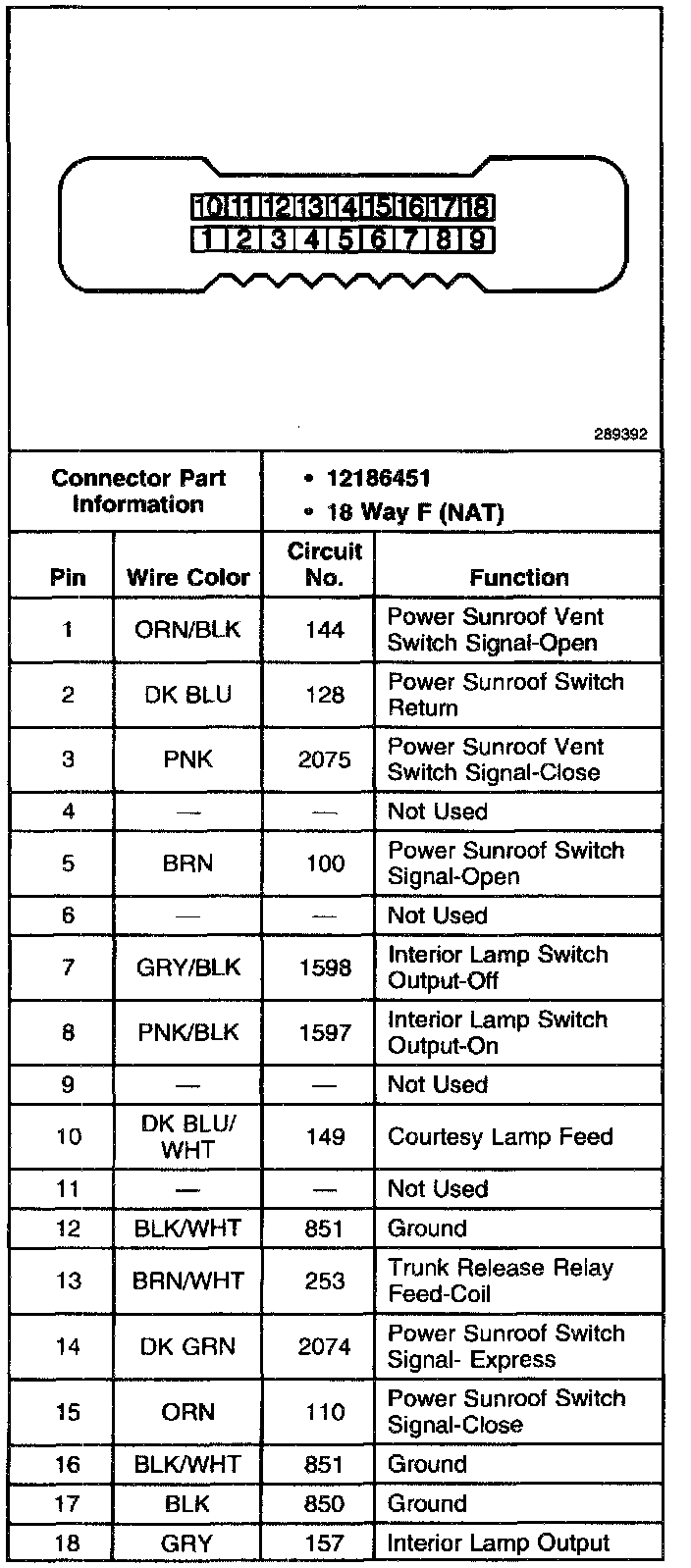

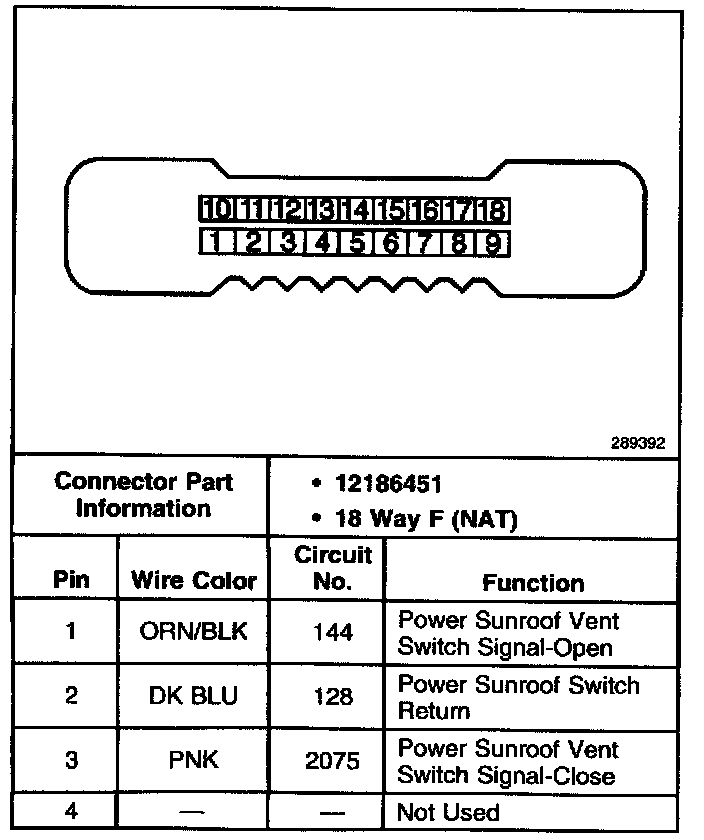

Overhead Console C1 (Part 1 Of 2):

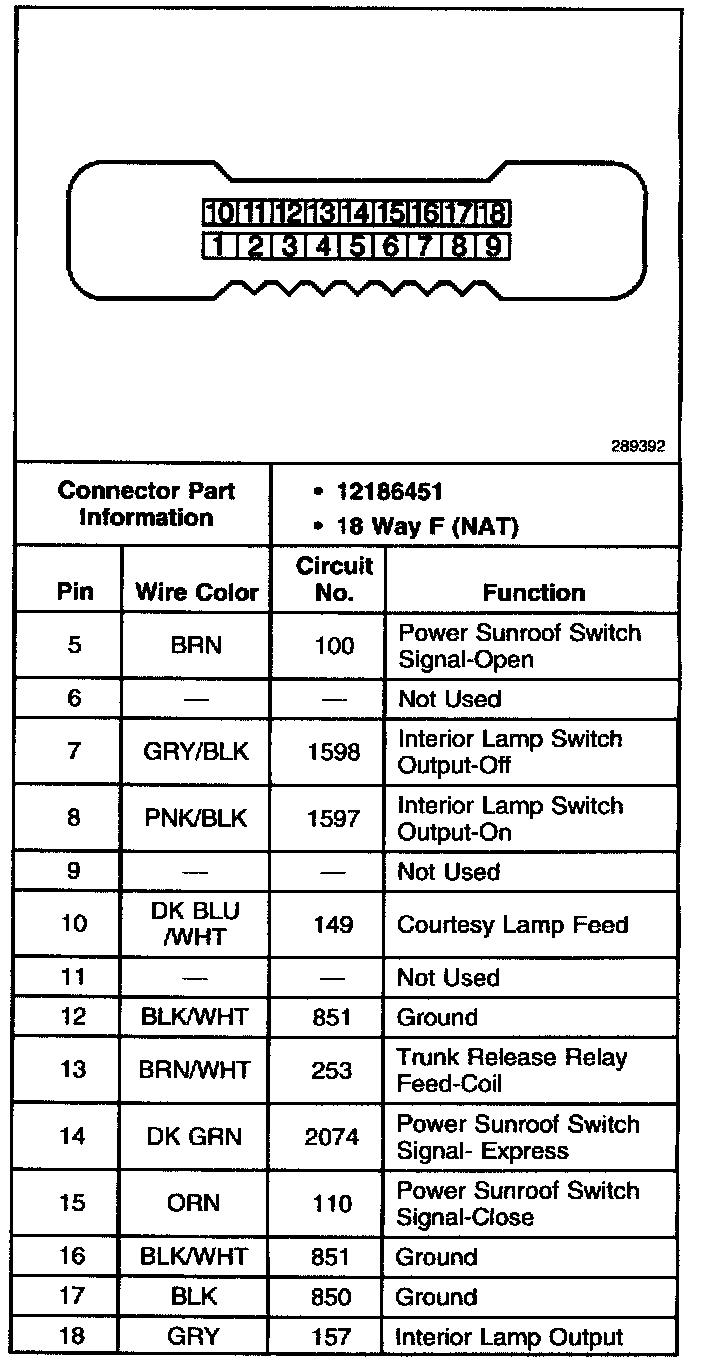

Overhead Console C1 (Part 2 Of 2):

Overhead Console: C1:
