Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (Lfdm), LH Front >> C1

C1

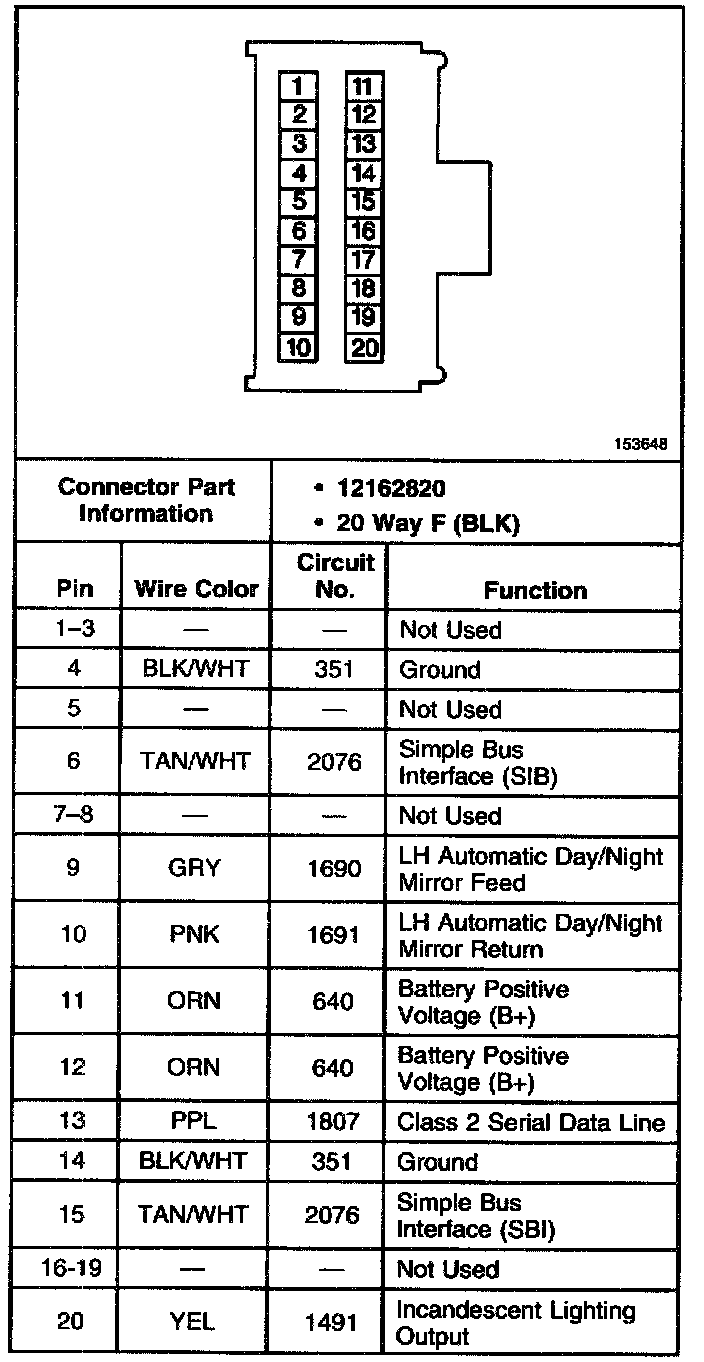

LH Front Door Module (LFDM): C1:
