Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1998
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>
Door Module (Rfdm), RH Front
>>
C2
C2

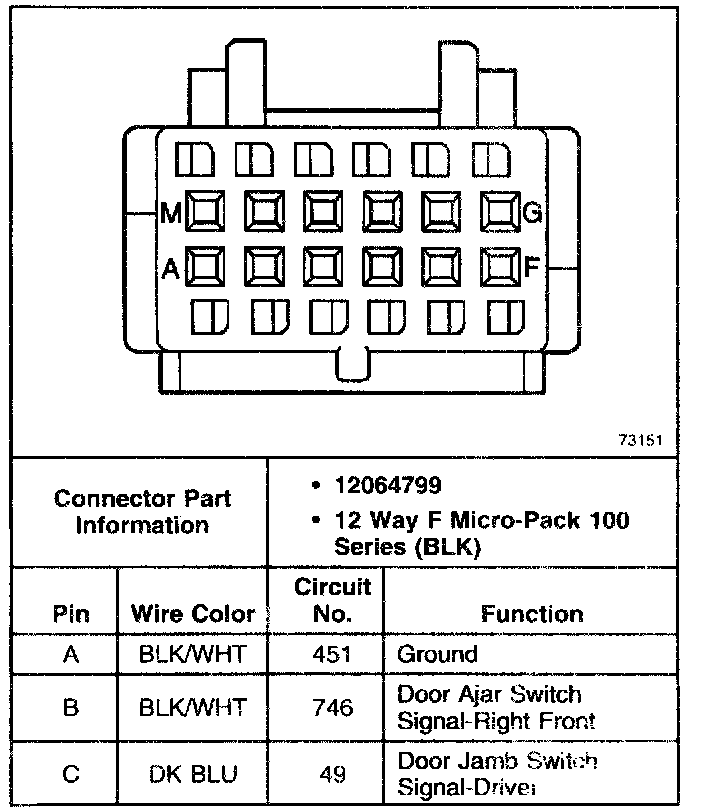

RH Front Door Module (RFDM): C2 (Part 1 of 2):

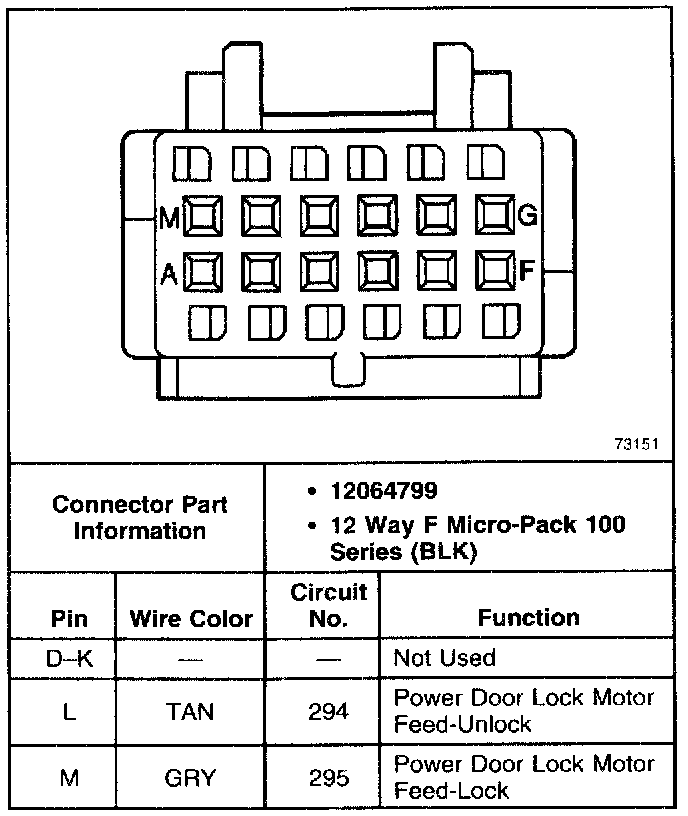

RH Front Door Module (RFDM): C2 (Part 2 of 2):
