Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (Rfdm), RH Front >> C4

C4

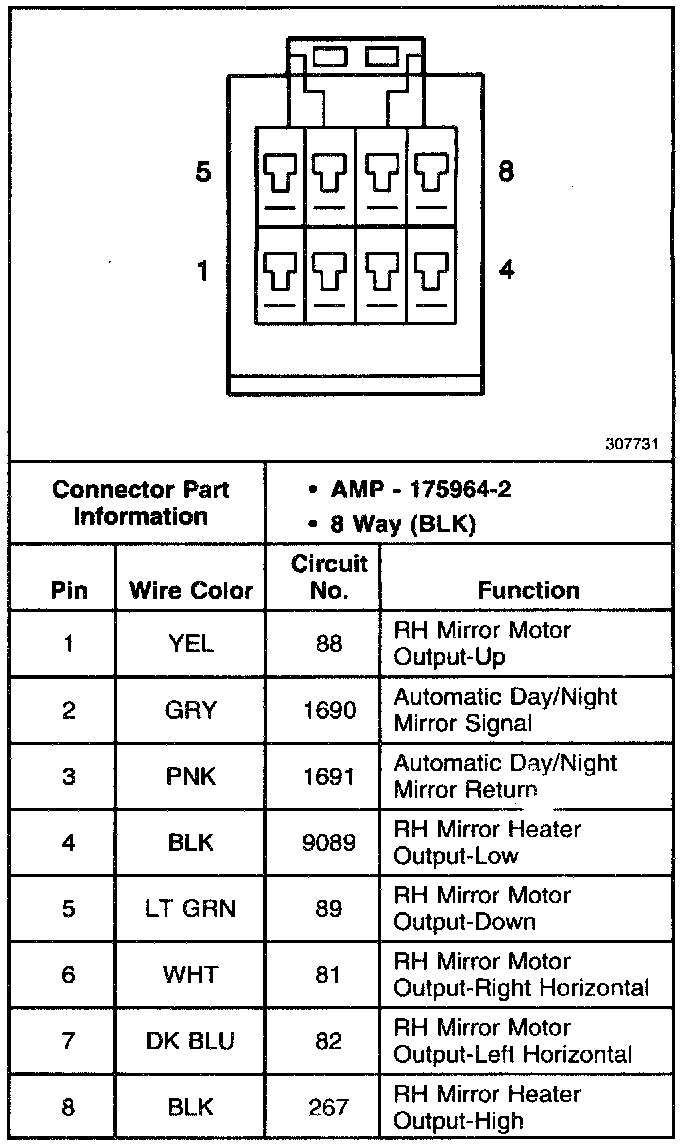

RH Front Door Module (RFDM): C4:
