Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (Rrdm), LH Rear >> C2

C2

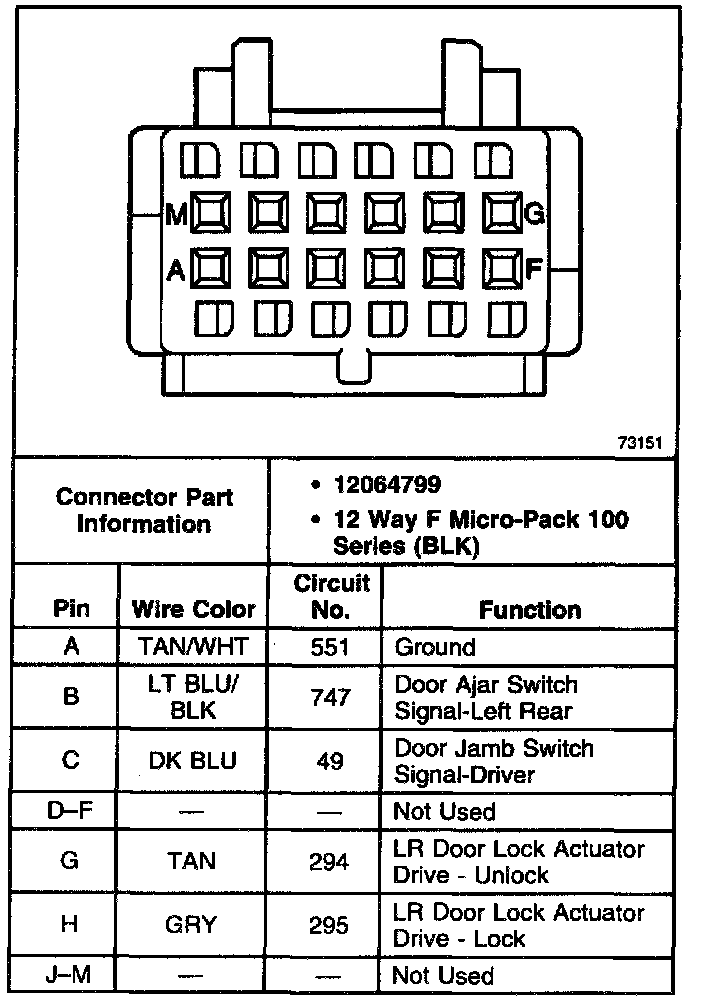

LH Rear Door Module (RFDM): C2:
