Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (Rrdm), RH Rear >> C3

C3

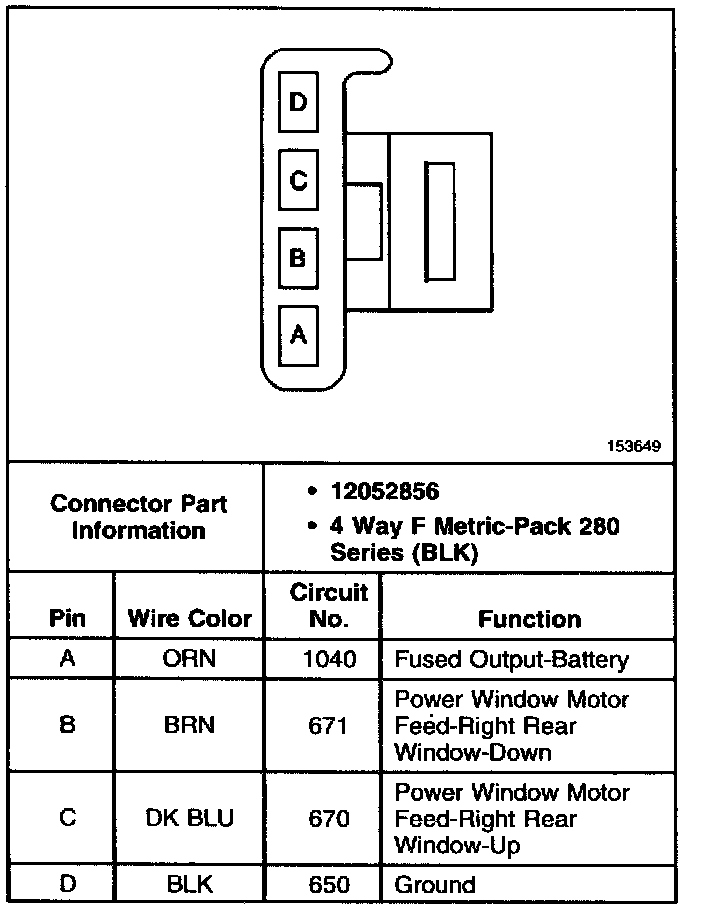

RH Rear Door Module (RRDM): C3:
