C1
C1

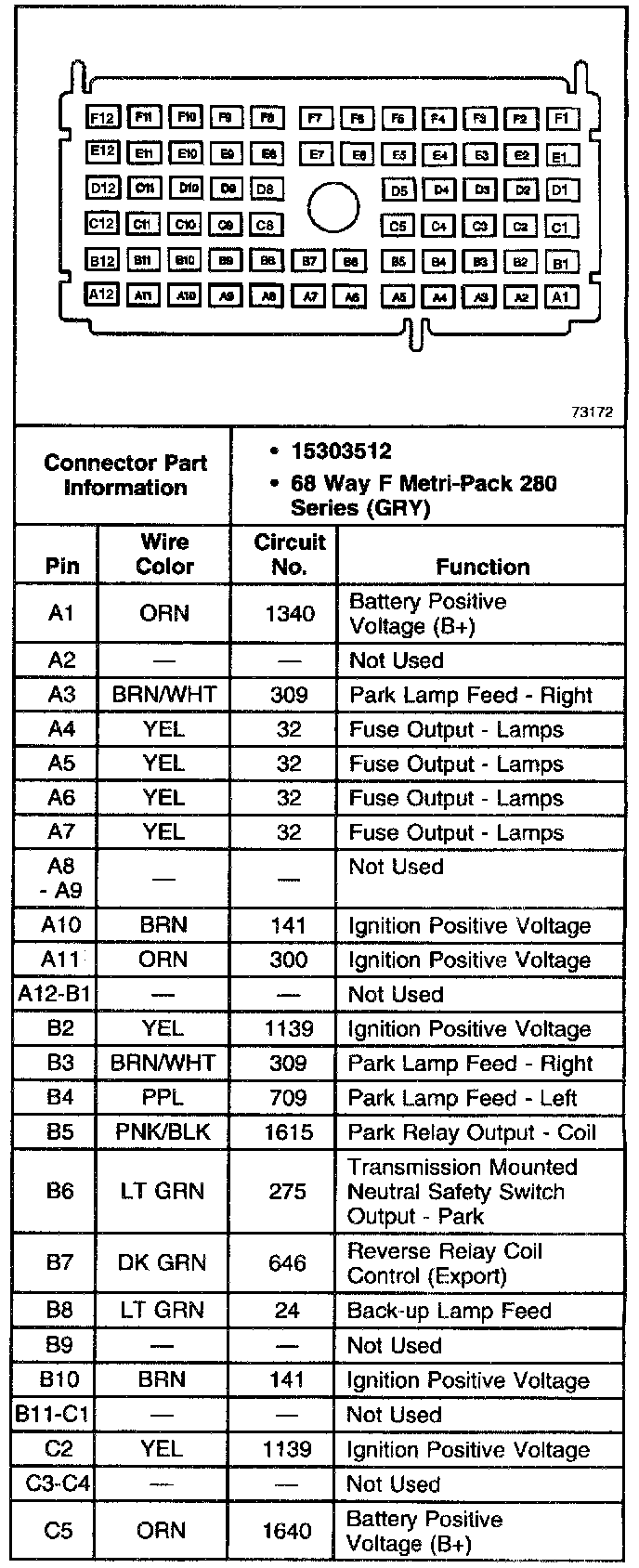

Rear Junction Block: C1 (Part 1 of 3):

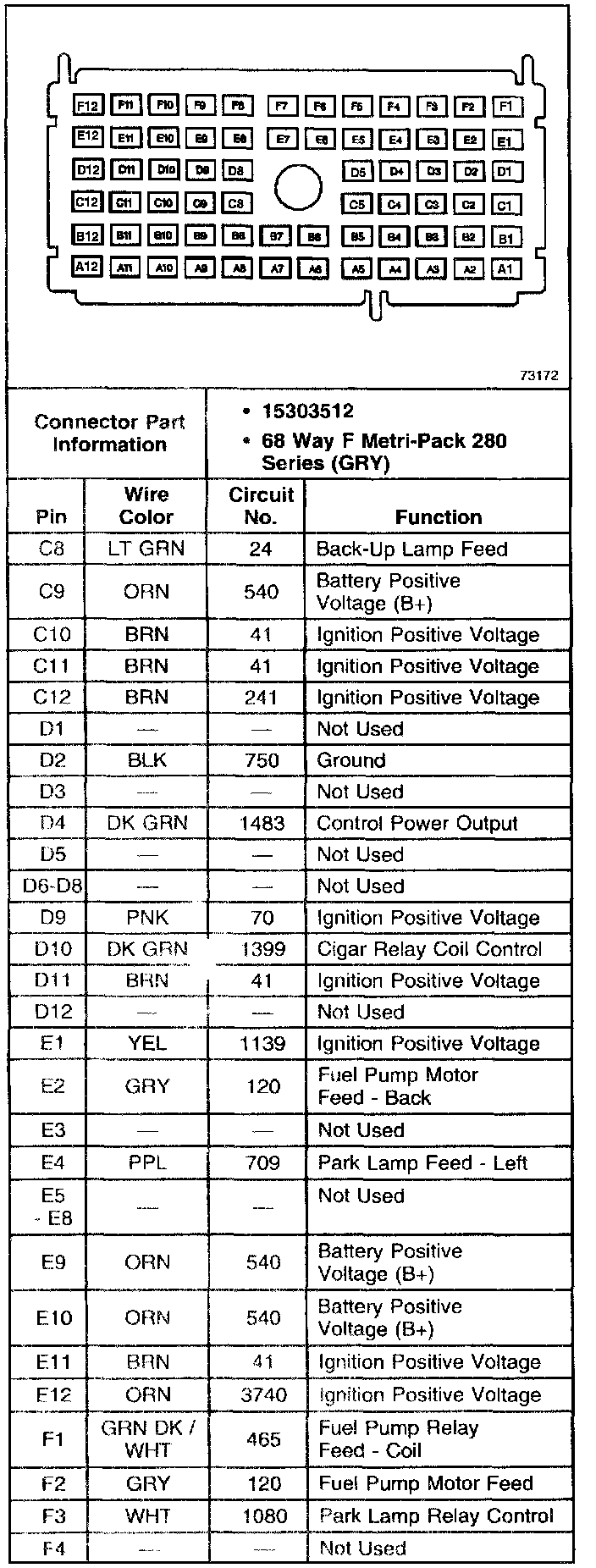

Rear Junction Block: C1 (Part 2 of 3):

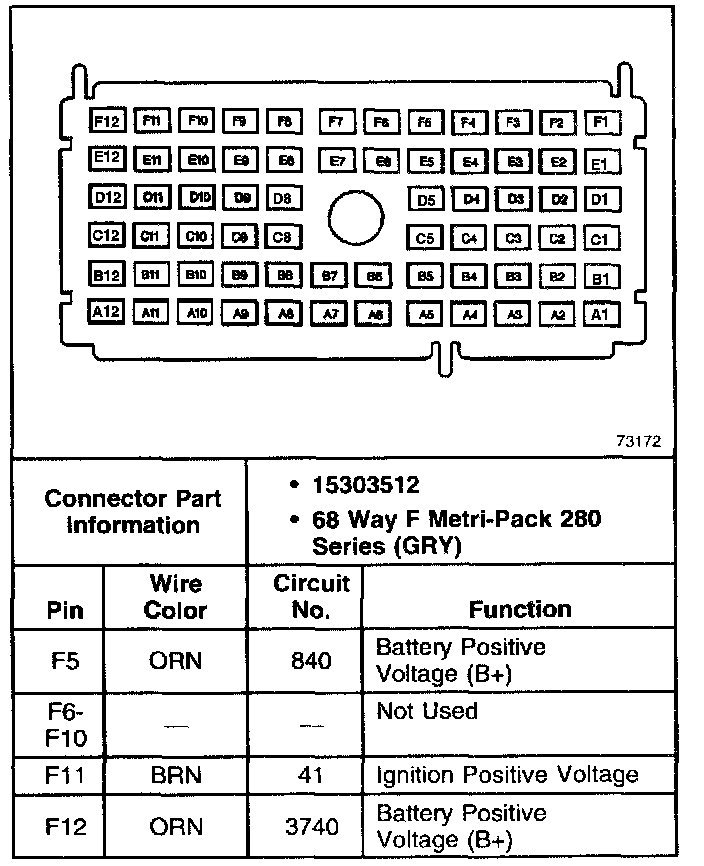

Rear Junction Block: C1 (Part 3 of 3):
