Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1998
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
System Diagram
System Diagram

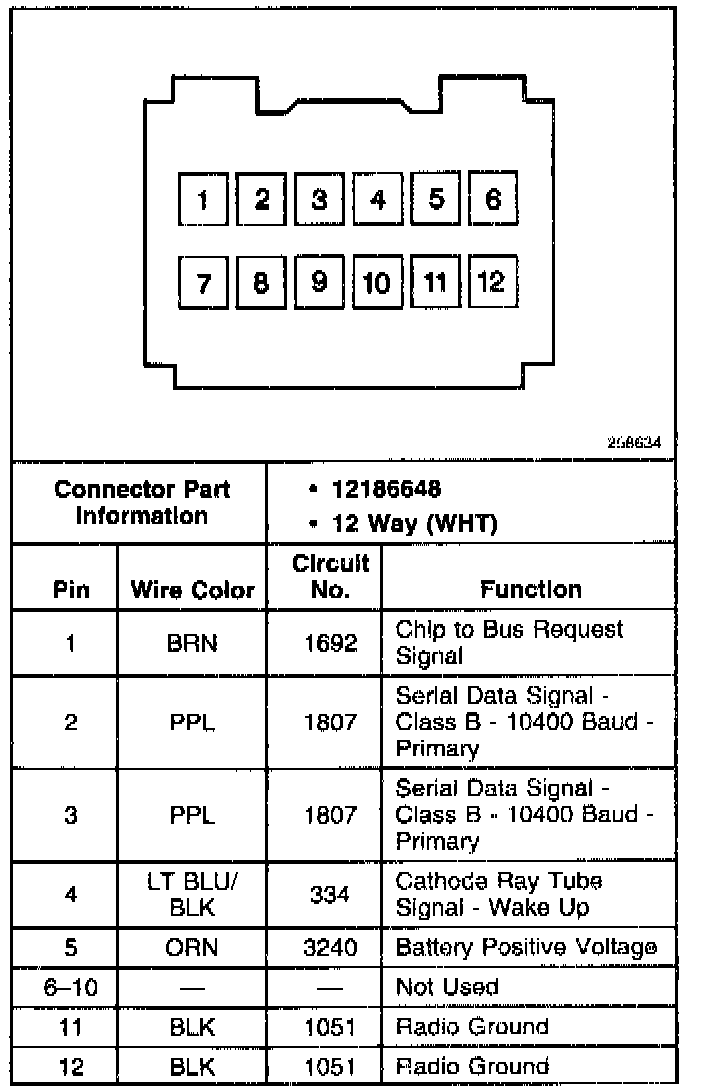

Navigation Data Processor: C1:

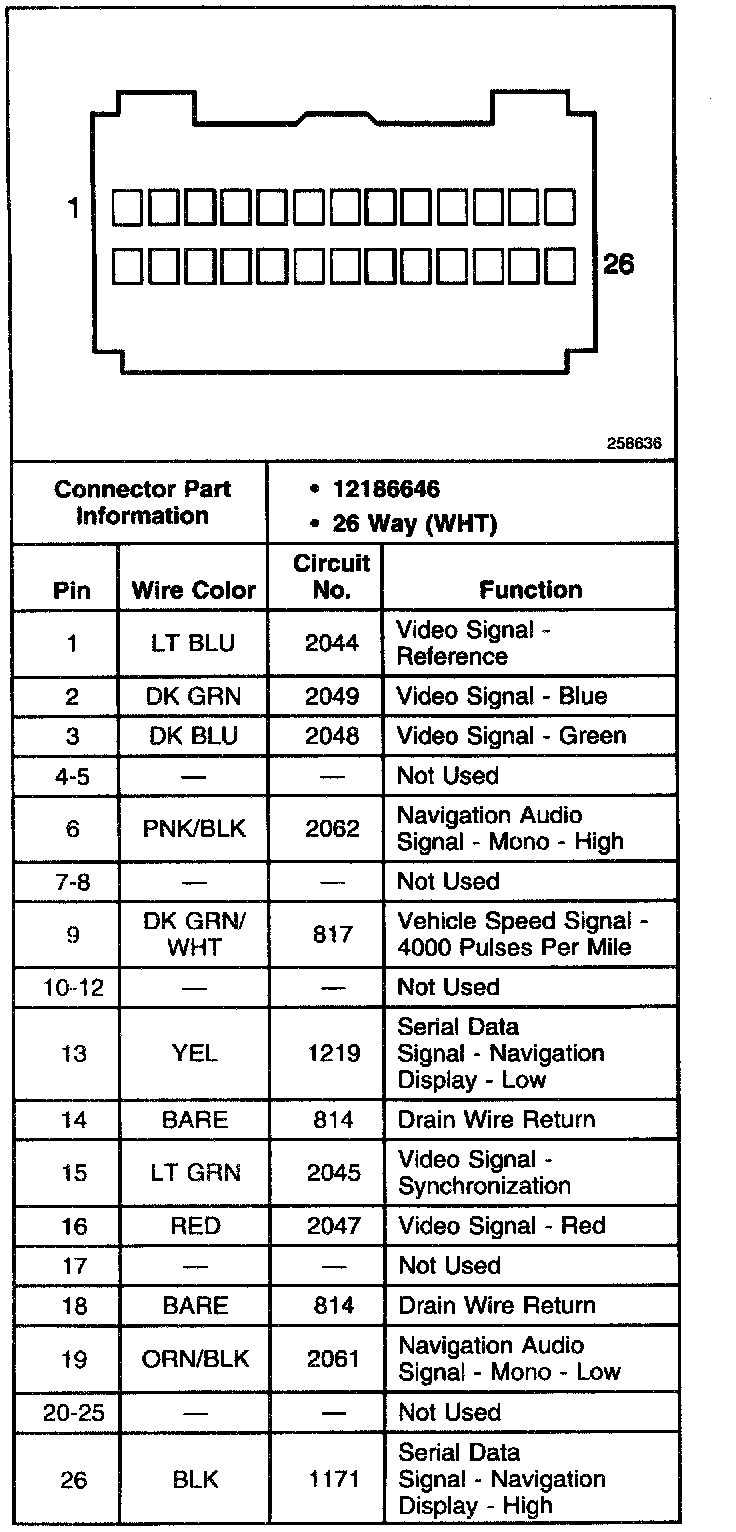

Navigation Data Processor: C2:
