Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Adaptive Lumbar Module >> RH

RH

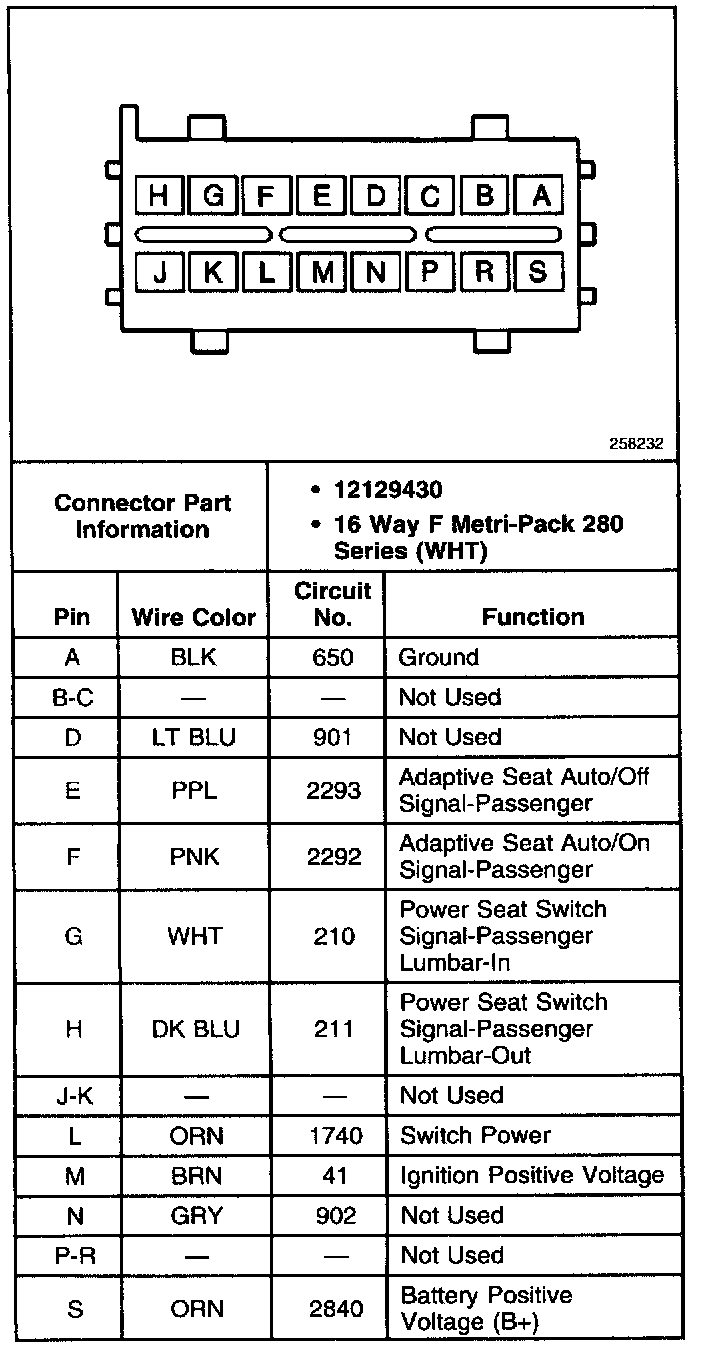

RH Adaptive Lumbar Module:
