Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Recline Position Sensor

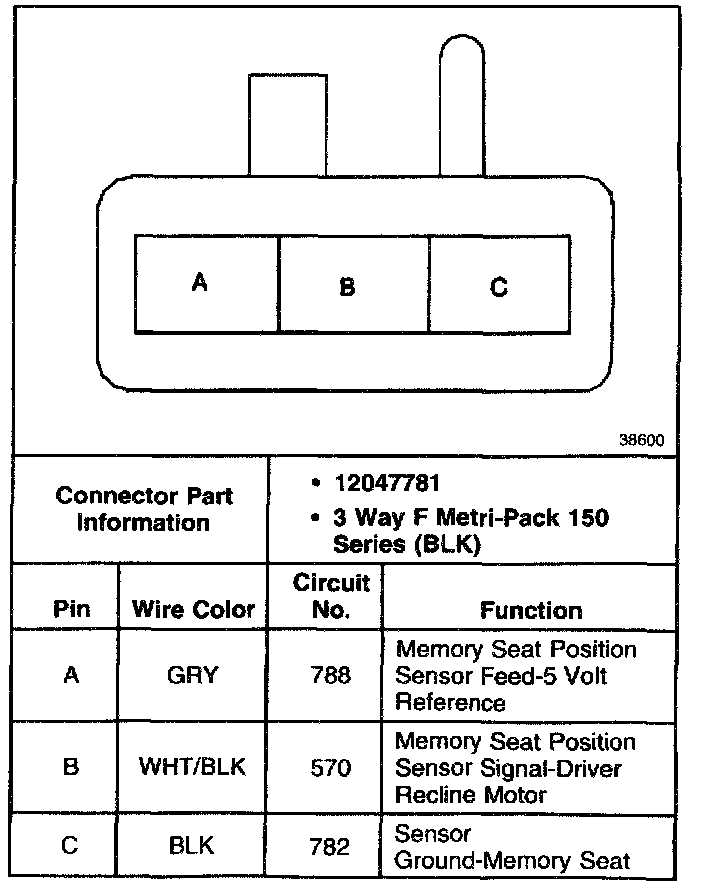

Recline Position Sensor

Recline Position Sensor:
