Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Rear >> LH >> C3

C3

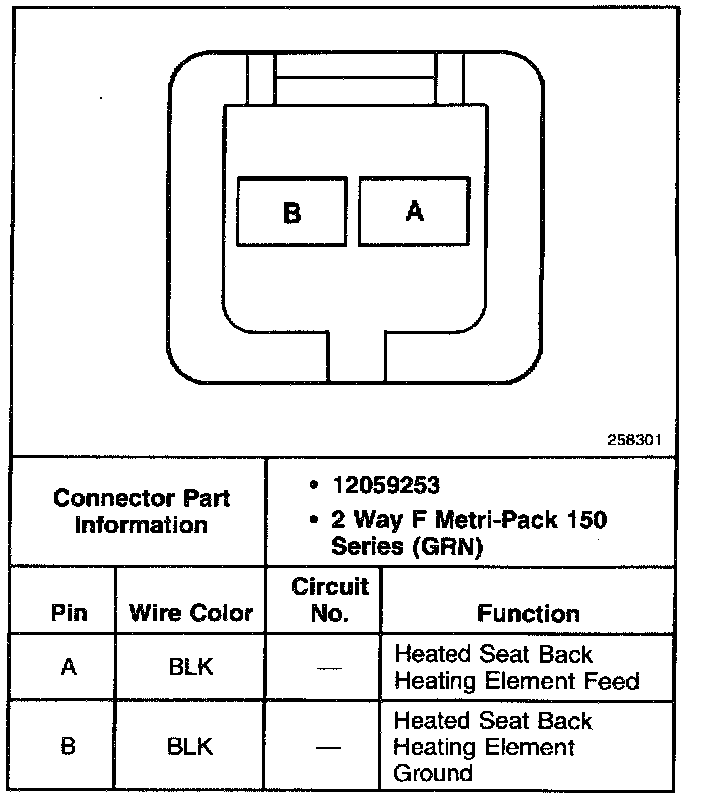

LH Rear Heated Seat Module: C3:
