Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering >> Steering Mounted Controls Transmitter >> RH

RH

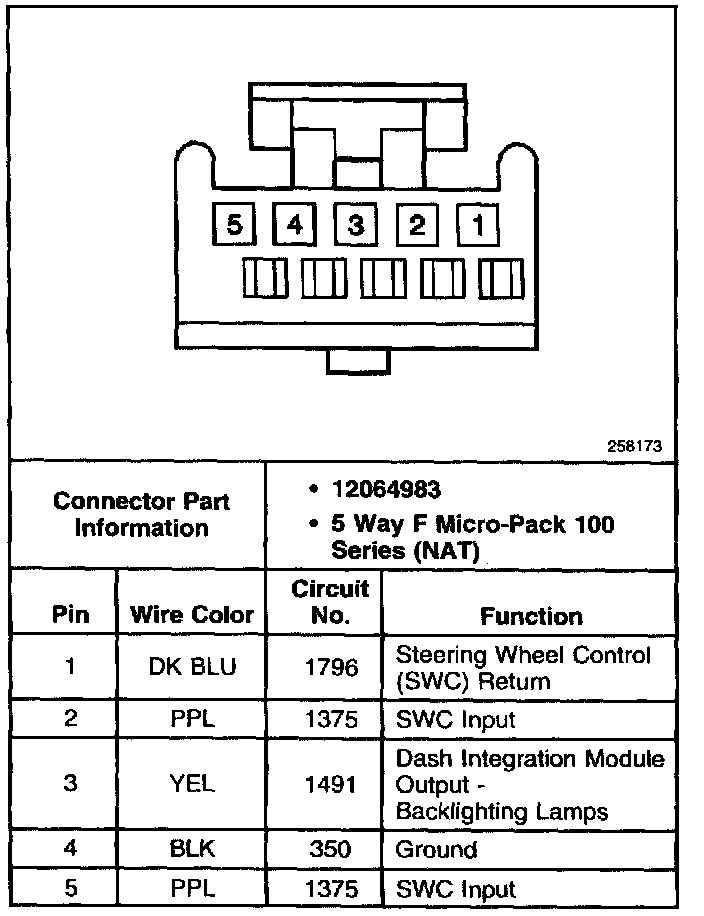

RH Side Steering Wheel Controls:
