Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module >> C1

C1

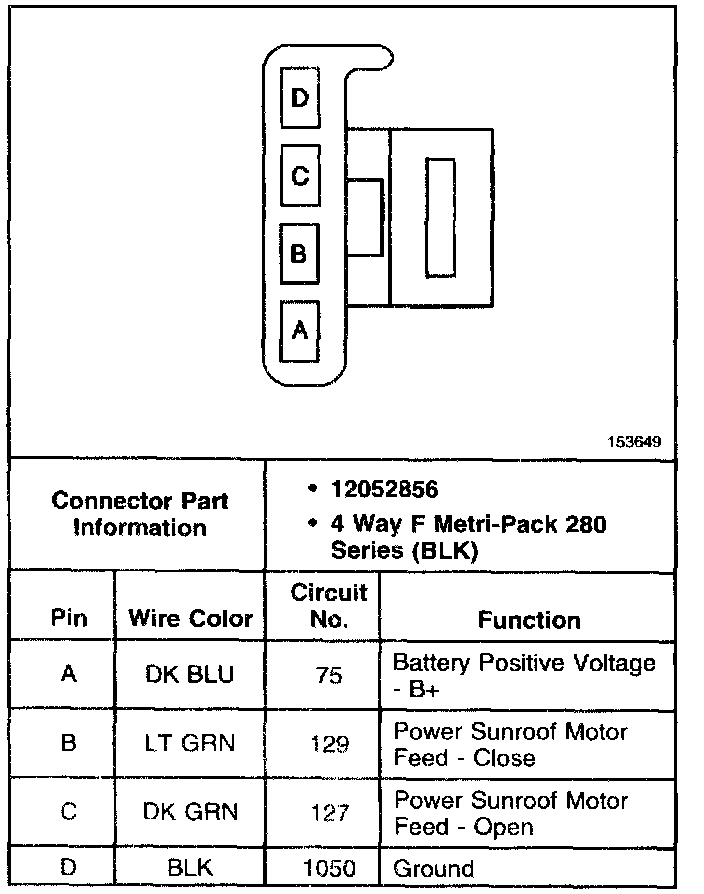

Sunroof Control Module: C1:
