LFDM Power, Ground Inputs and Outputs

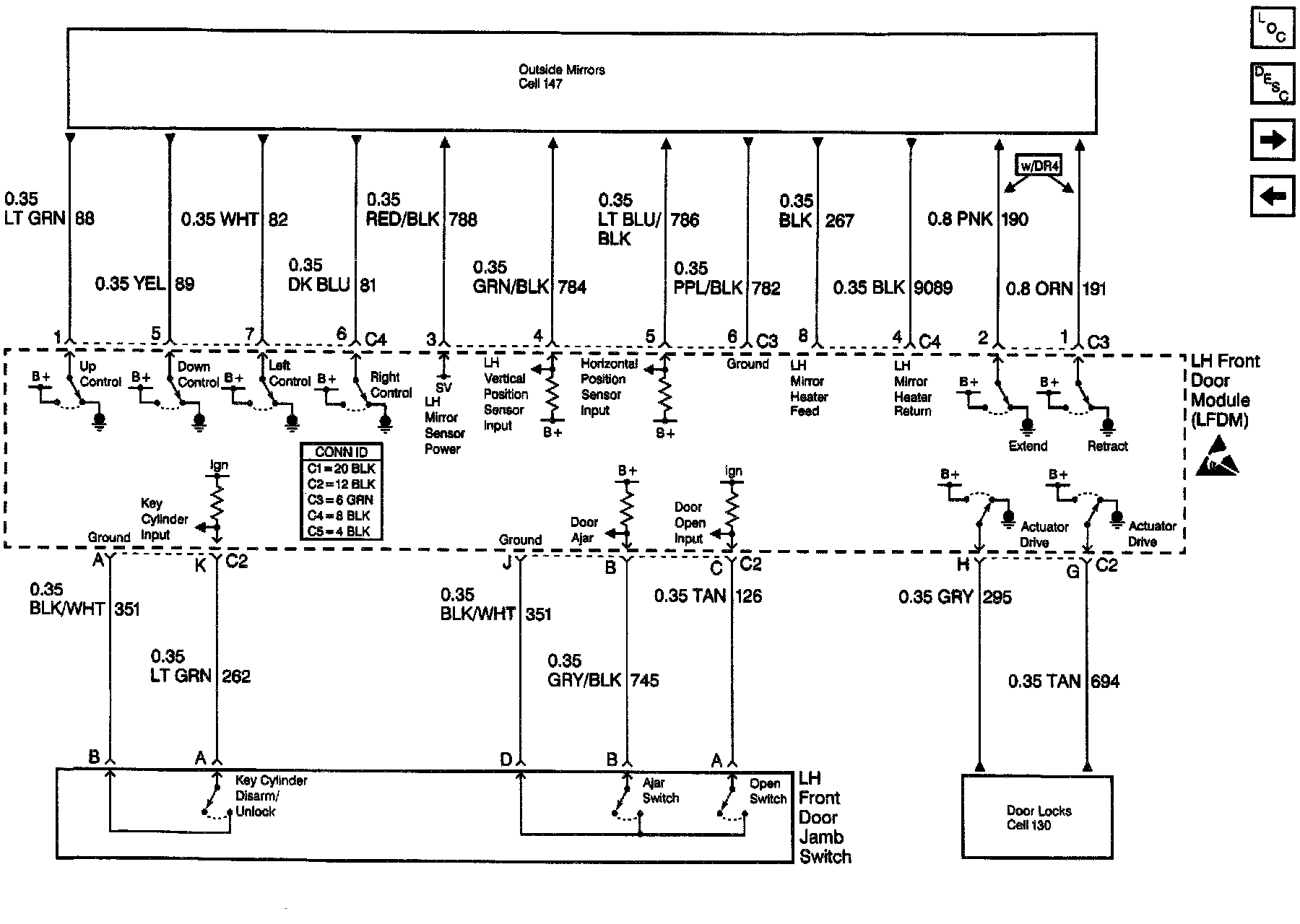

Door Control Module Schematics: LFDM Power, Ground Inputs And Outputs:
