LRDM Power, Ground, Inputs and Outputs

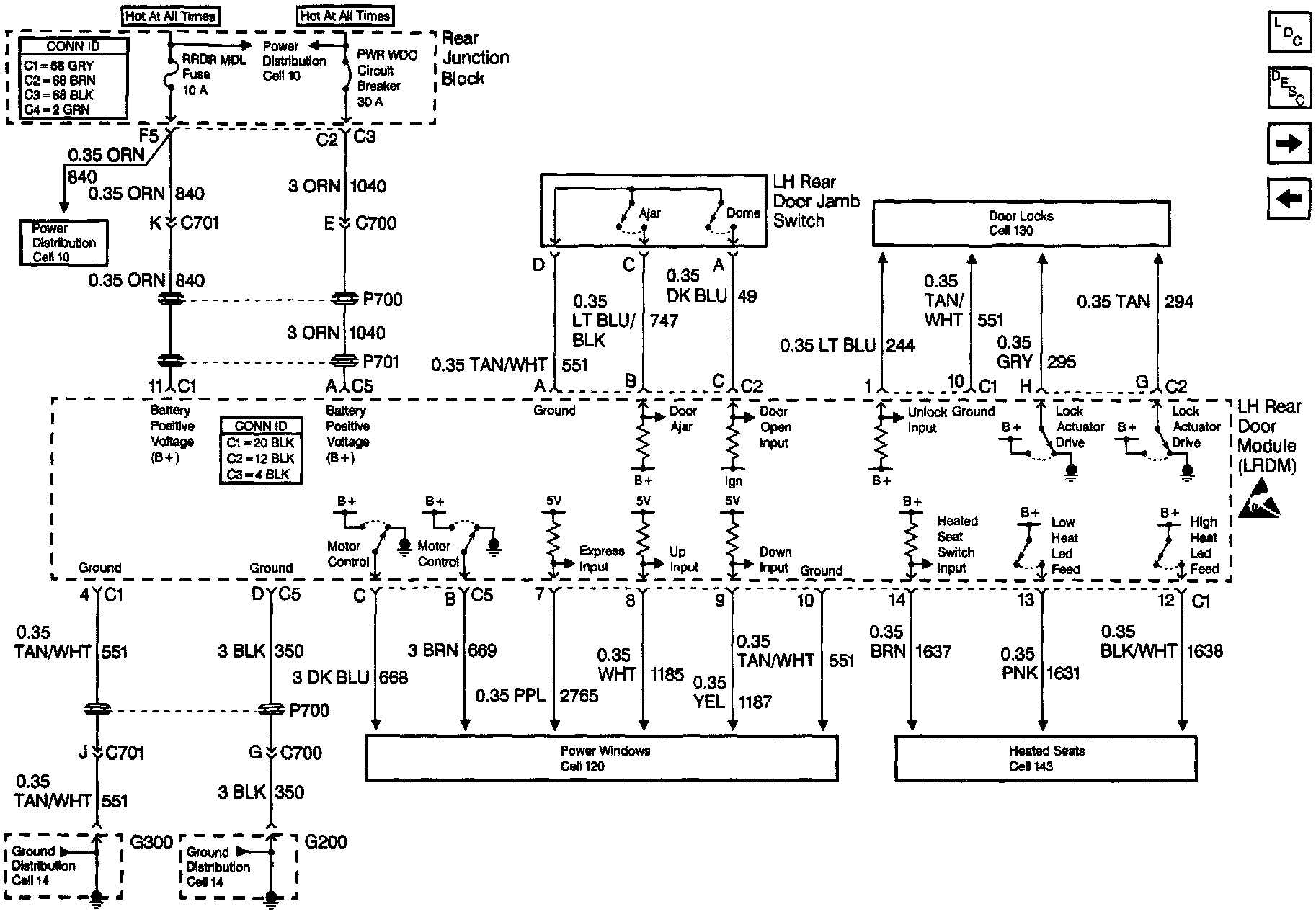

Door Control Module Schematics: LRDM Power, Ground, Inputs And Outputs:
