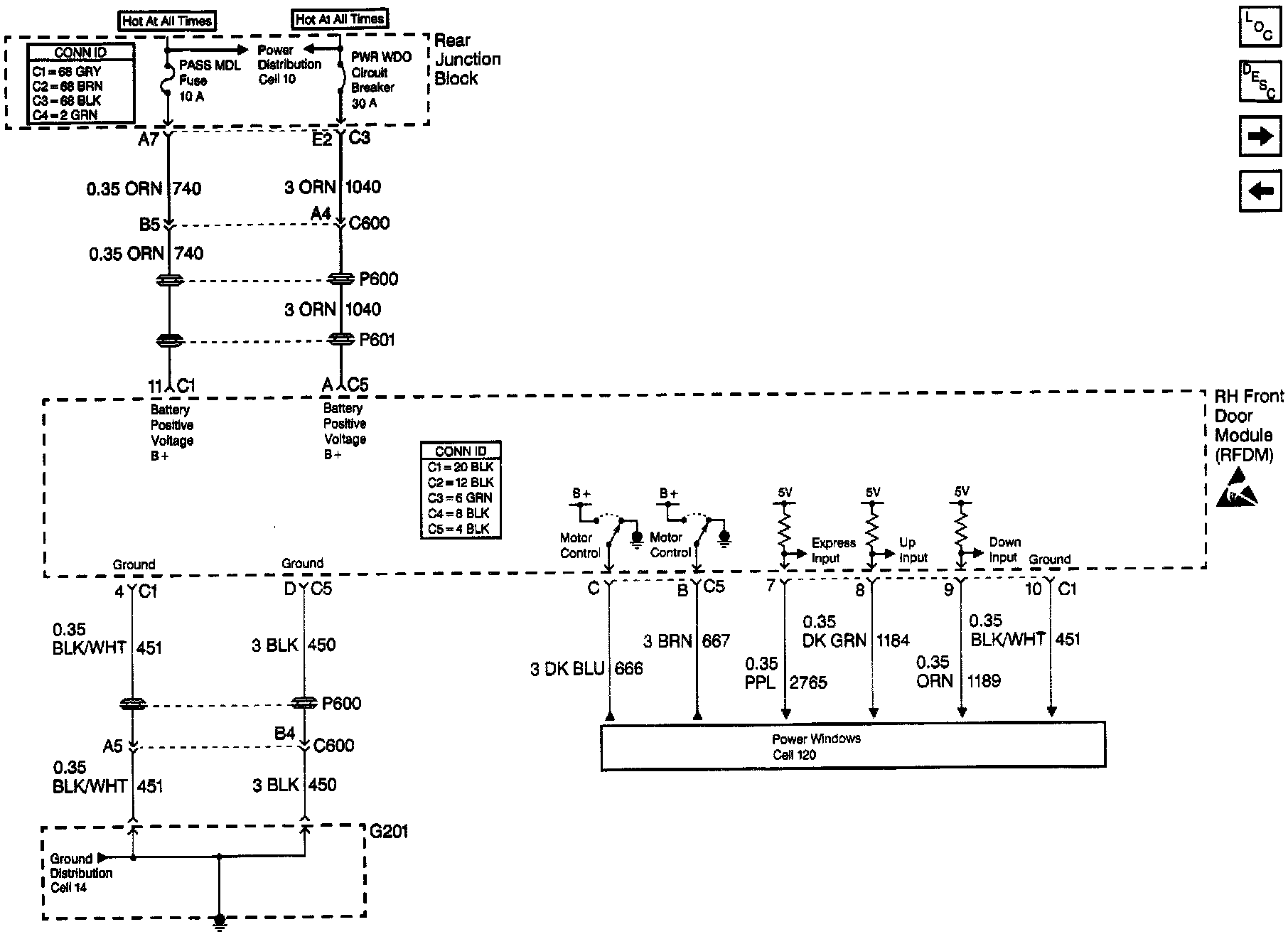

RFDM Power, Ground Inputs and Outputs

Door Control Module Schematics: RFDM Power, Ground Inputs And Outputs:
