Control Assembly: Service and Repair

Removal Procedure





1. Remove the instrument panel center trim plate.

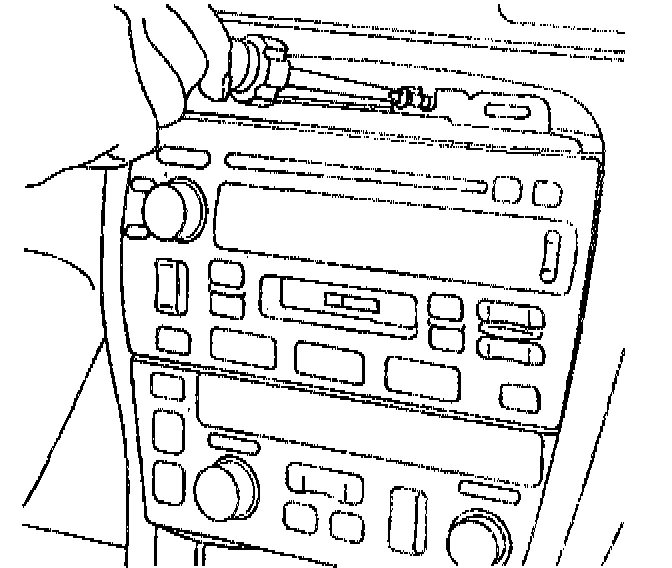

2. Remove the console trim plate.

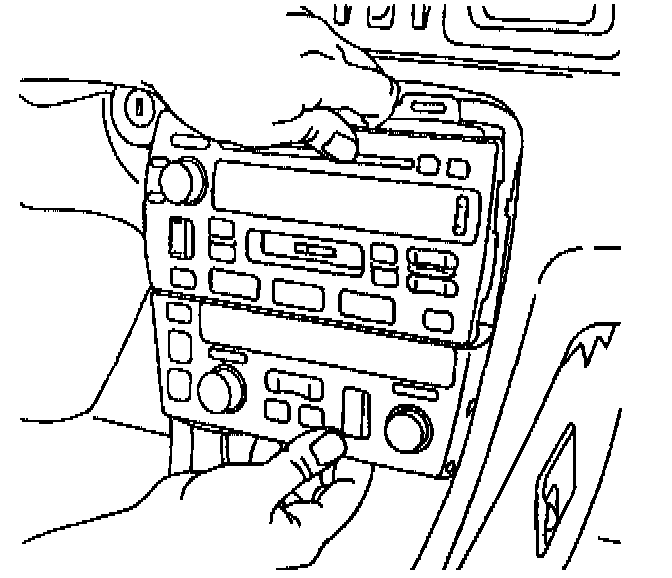

3. Remove the control assembly and radio.





4. Remove the control assembly bracket fasteners.

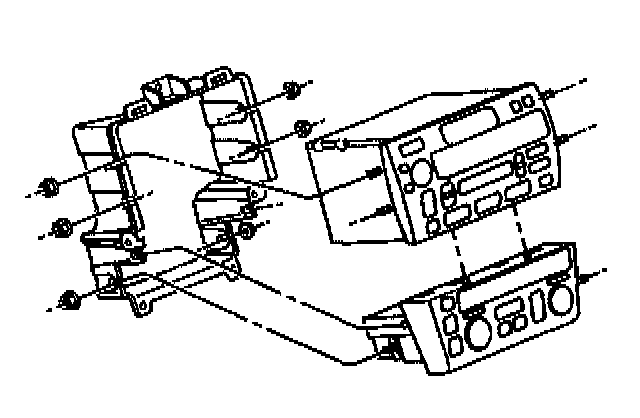

5. Disconnect the electrical connectors from the control assembly and radio.





6. Remove the control assembly retaining nuts.
7. Remove the control assembly from the bracket.

Installation Procedure





1. Install the control assembly to the bracket.
2. Install the control assembly retaining nuts

Tighten
Tighten the radio retaining nuts to 10 N.m (88 lb. in.).





3. Connect the electrical connectors to the control assembly and radio.

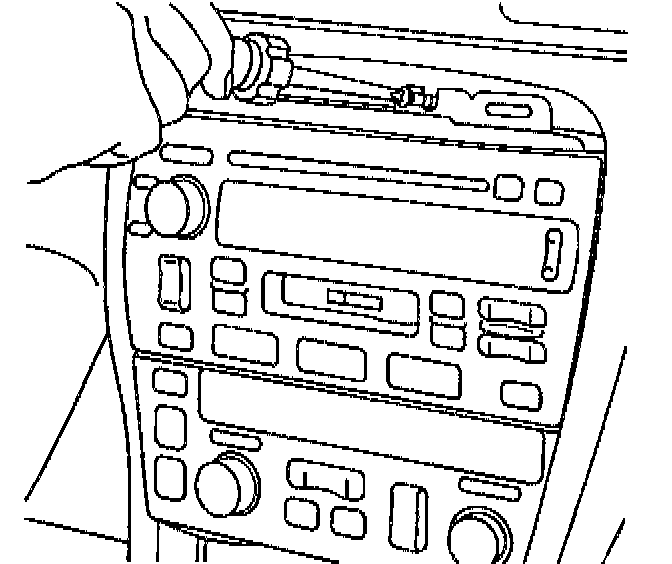

4. Install the control assembly bracket fasteners.

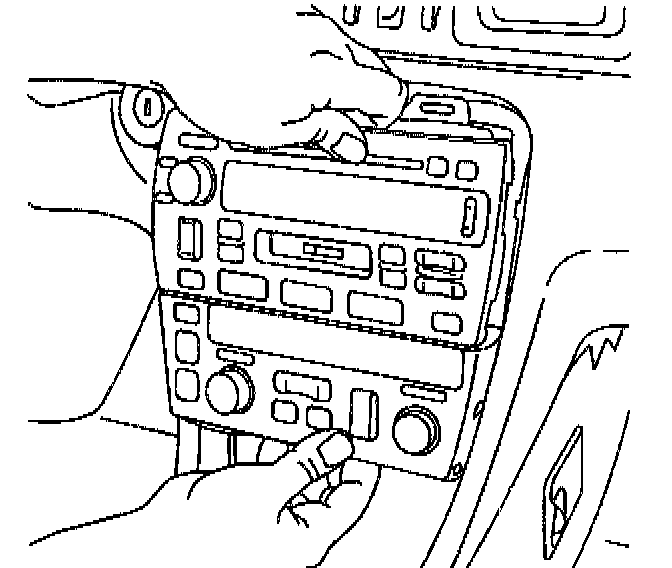

5. Install the control assembly and radio to vehicle.
6. Install the console trim plate.
7. Install the instrument panel center trim panel.
