Evaporator Core: Service and Repair

Removal Procedure

1. Remove the HVAC module assembly. Service and Repair

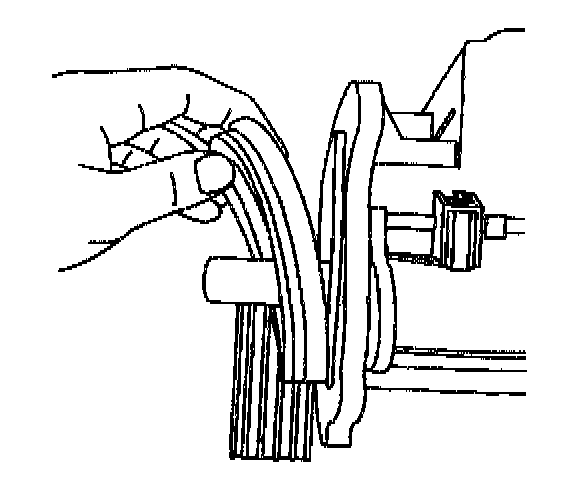

2. Remove the seal from around the heater core and evaporator tubes.





3. Remove the upper evaporator case.

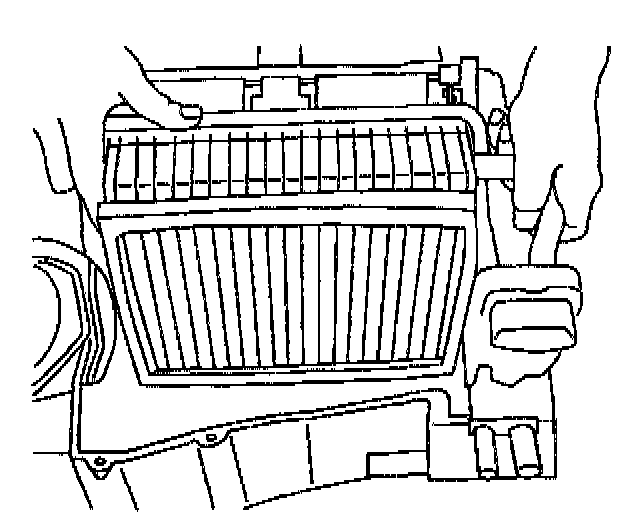

4. Remove the evaporator core.
5. Remove the evaporator case seals.

Installation Procedure

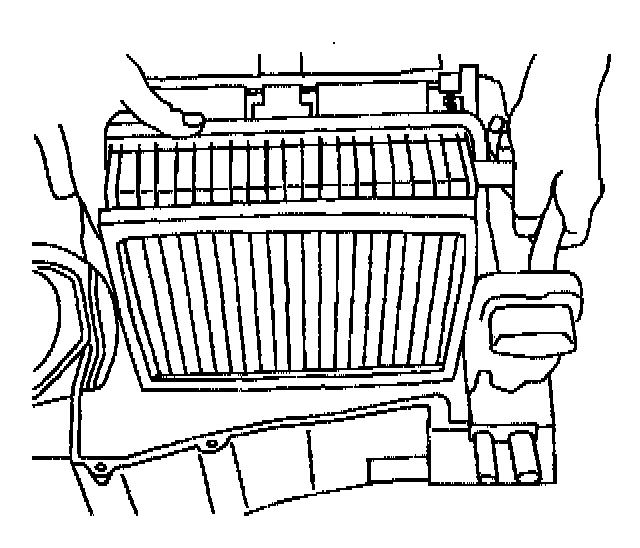

1. Install the evaporator.
2. Install new evaporator case seals.





3. Install the upper evaporator case.

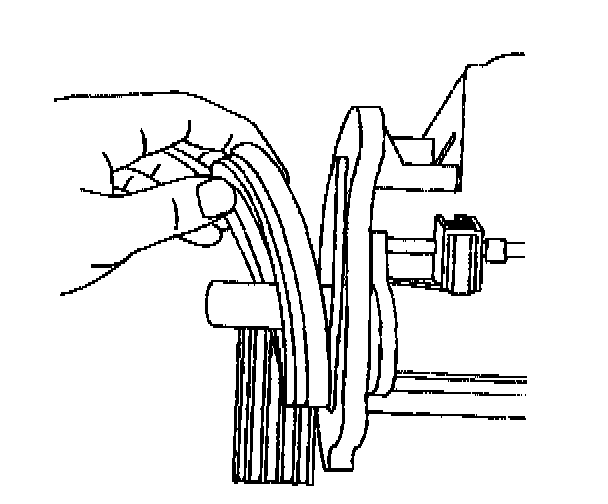

4. Install the seal around the heater core and evaporator tubes.
5. Install the HVAC module assembly.
