Heater Core: Service and Repair
Removal Procedure1. Disconnect the heater hoses from the heater core.

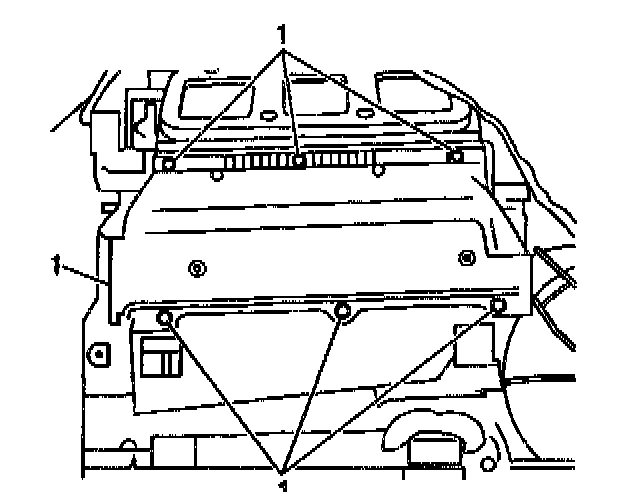

2. Remove the instrument panel assembly.

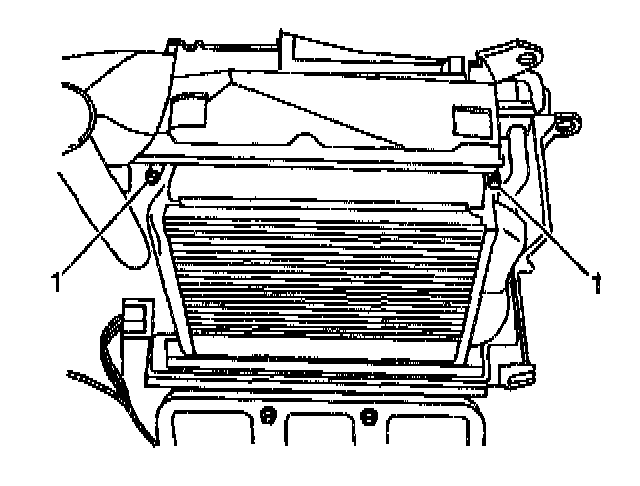

3. Remove the heater core cover screws (1).
4. Remove the heater core retaining screws (1).

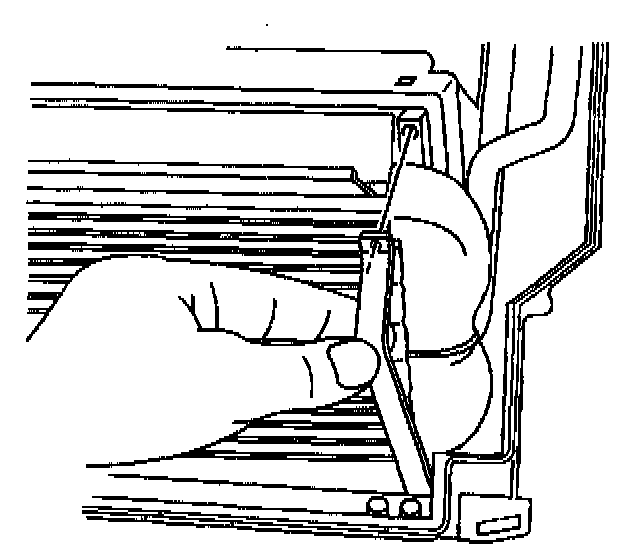

5. Remove the heater core retaining straps.
6. Remove the heater core.
7. Remove the heater core case seals.
Installation Procedure
1. Install the heater core.
2. Install the heater core retaining straps.
3. Install new heater core case seals.

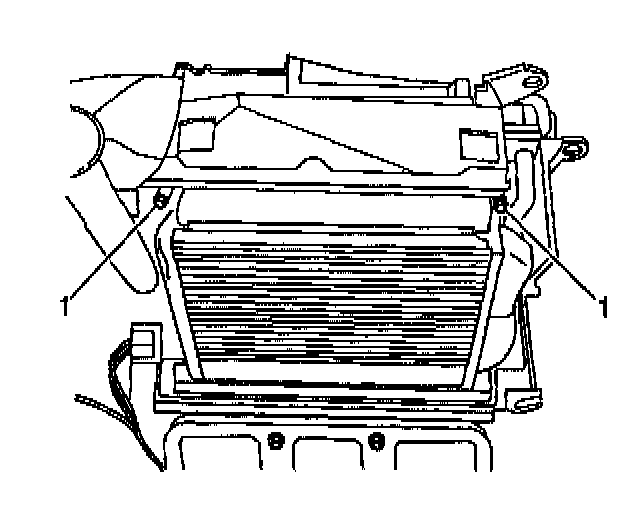

4. Install the heater core retaining screws (1).
5. Install the heater core cover screws (1).
6. Install the instrument panel assembly.
7. Connect the heater hoses to the heater core
