Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Temperature Sensor >> Diagrams

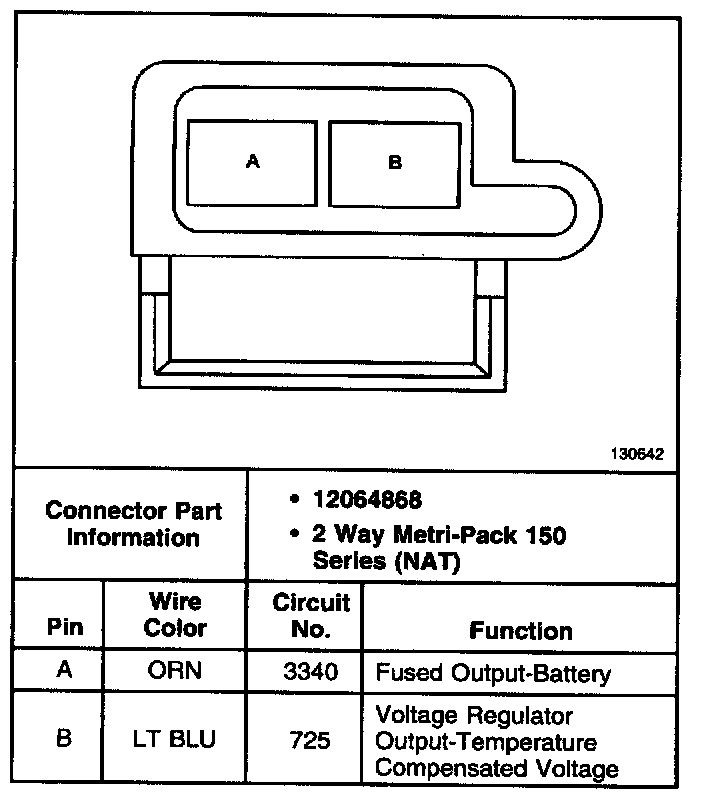

Battery Temperature Sensor: Diagrams

Batter Thermistor:
