Electronic Brake Control Module
>>
Locations
>>

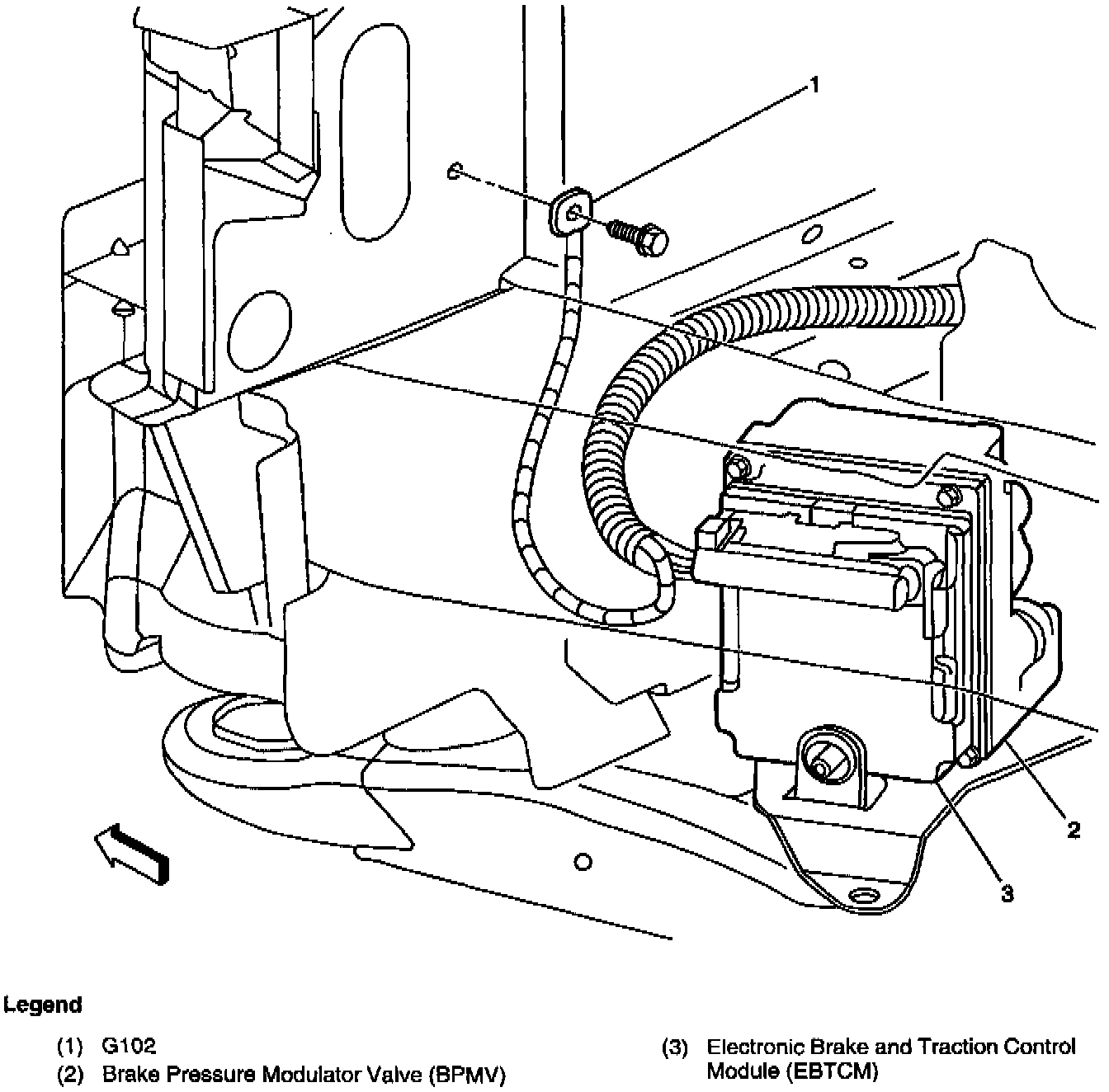

Electronic Brake and Traction Control Module Component Views
Electronic Brake and Traction Control Module Component Views
Left hand front corner of the engine compartment, below the air cleaner housing.
