Instrument Panel Control Module
>>
Diagrams
>>
Instrument Panel Integration Module (Ipm)
>>
C1
C1

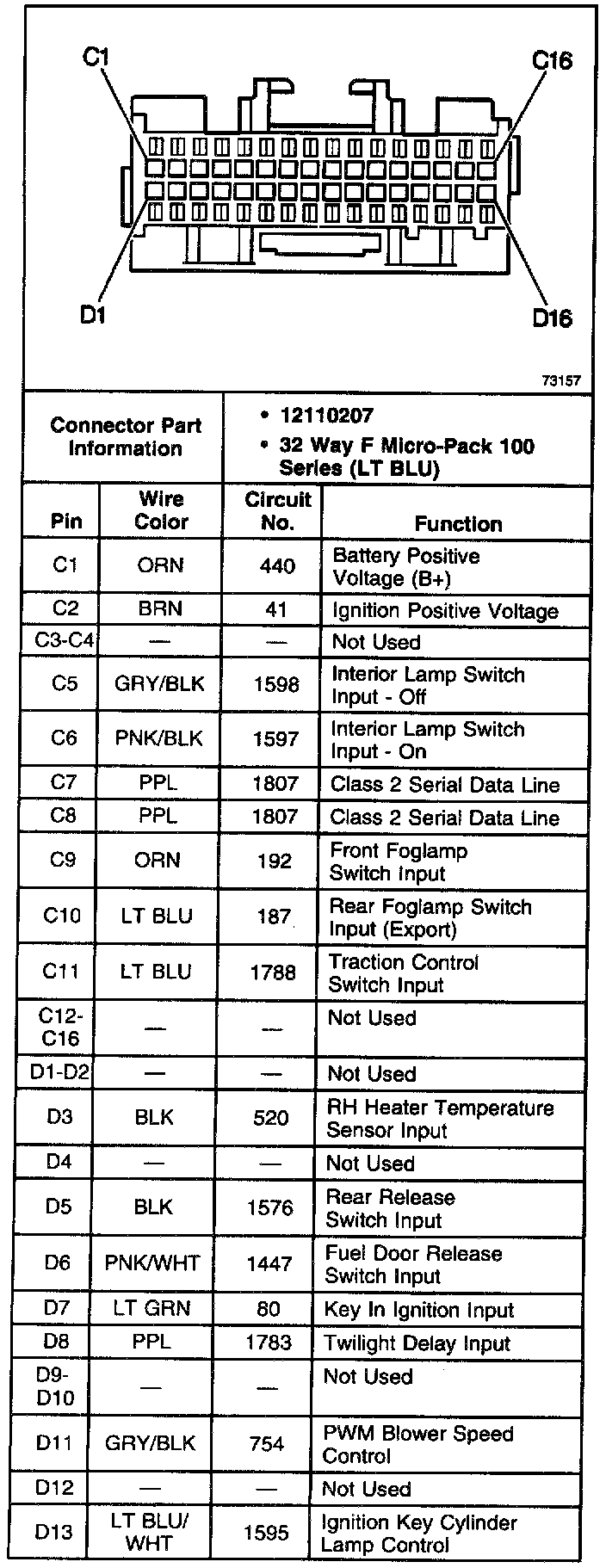

Instrument Panel Integration Module (IPM) : C1 (Part 1 of 2):

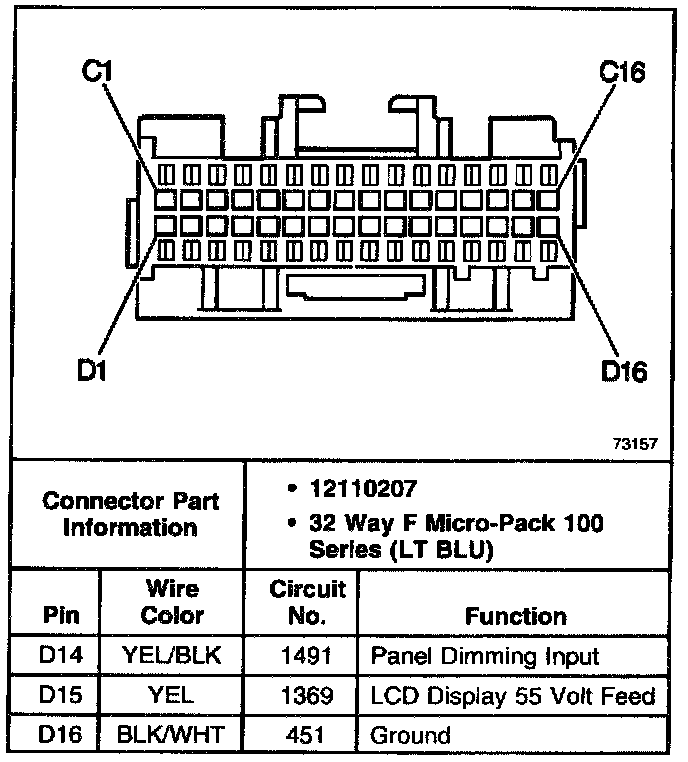

Instrument Panel Integration Module (IPM) : C1 (Part 2 of 2):
