Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1998
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Instrument Panel Control Module
>>
Diagrams
>>
Instrument Panel Integration Module (Ipm)
>>
C2
C2

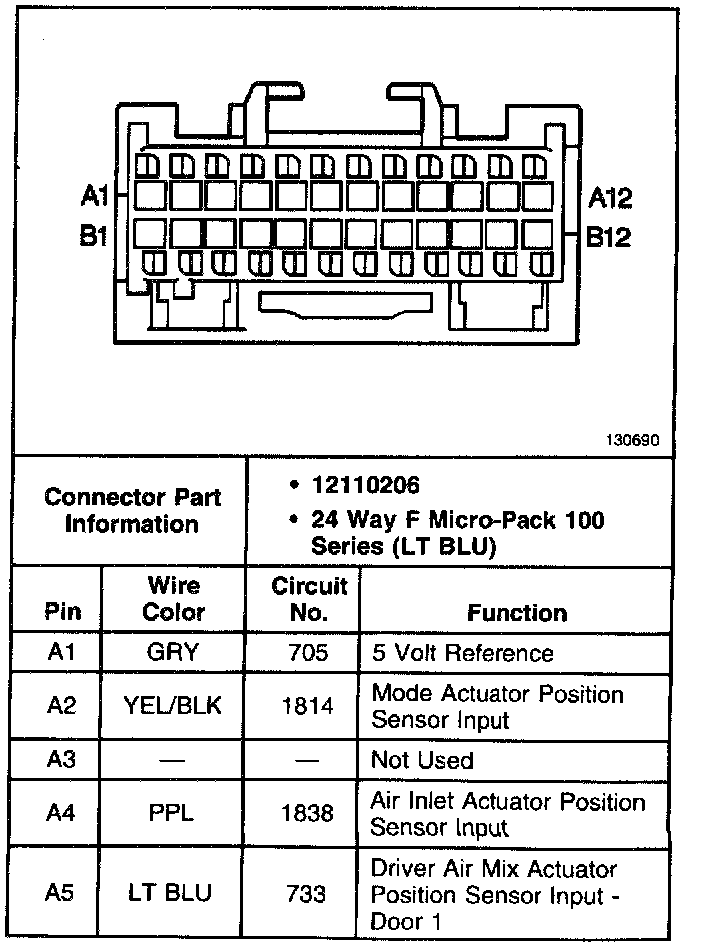

Instrument Panel Integration Module (IPM) : C2 (Part 1 of 2):

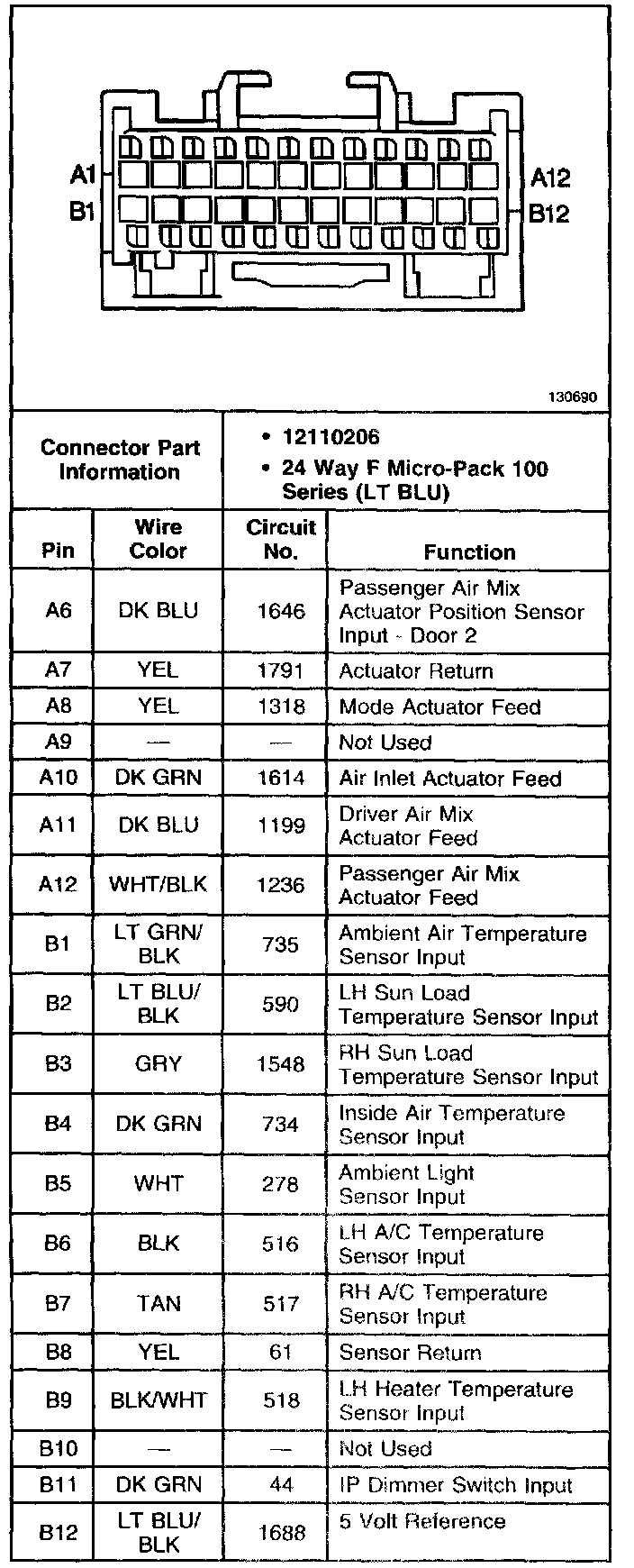

Instrument Panel Integration Module (IPM) : C2 (Part 2 of 2):
