Cadillac
>>
1998
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Instrument Panel Control Module
>>
Locations
>>

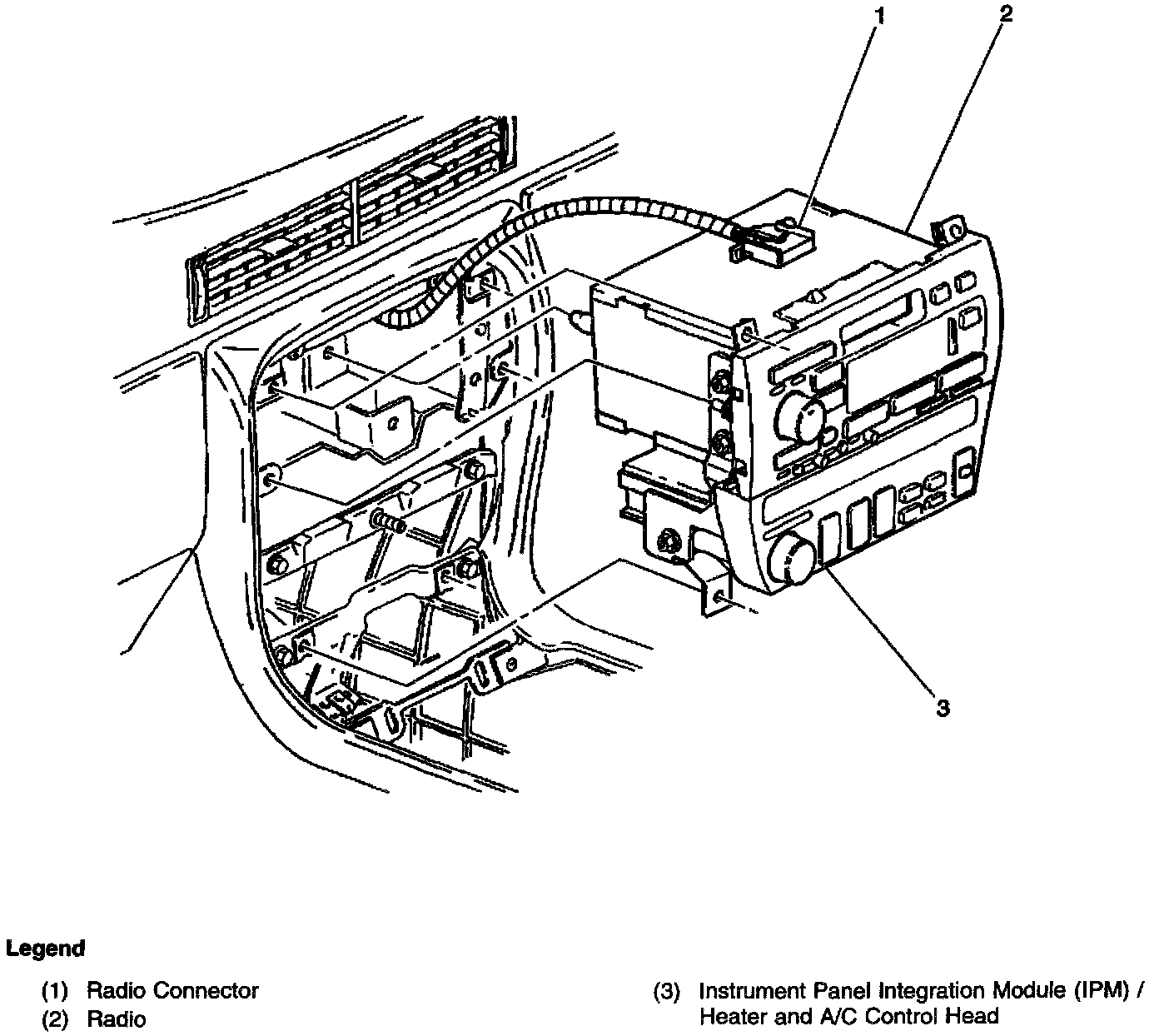

IP Integration Module (Ipm)/Heater & A/C Control Head
IP Integration Module (Ipm)/Heater & A/C Control Head
Passenger Compartment, In The Center Of The Instrument Panel:
