Underhood Junction Block

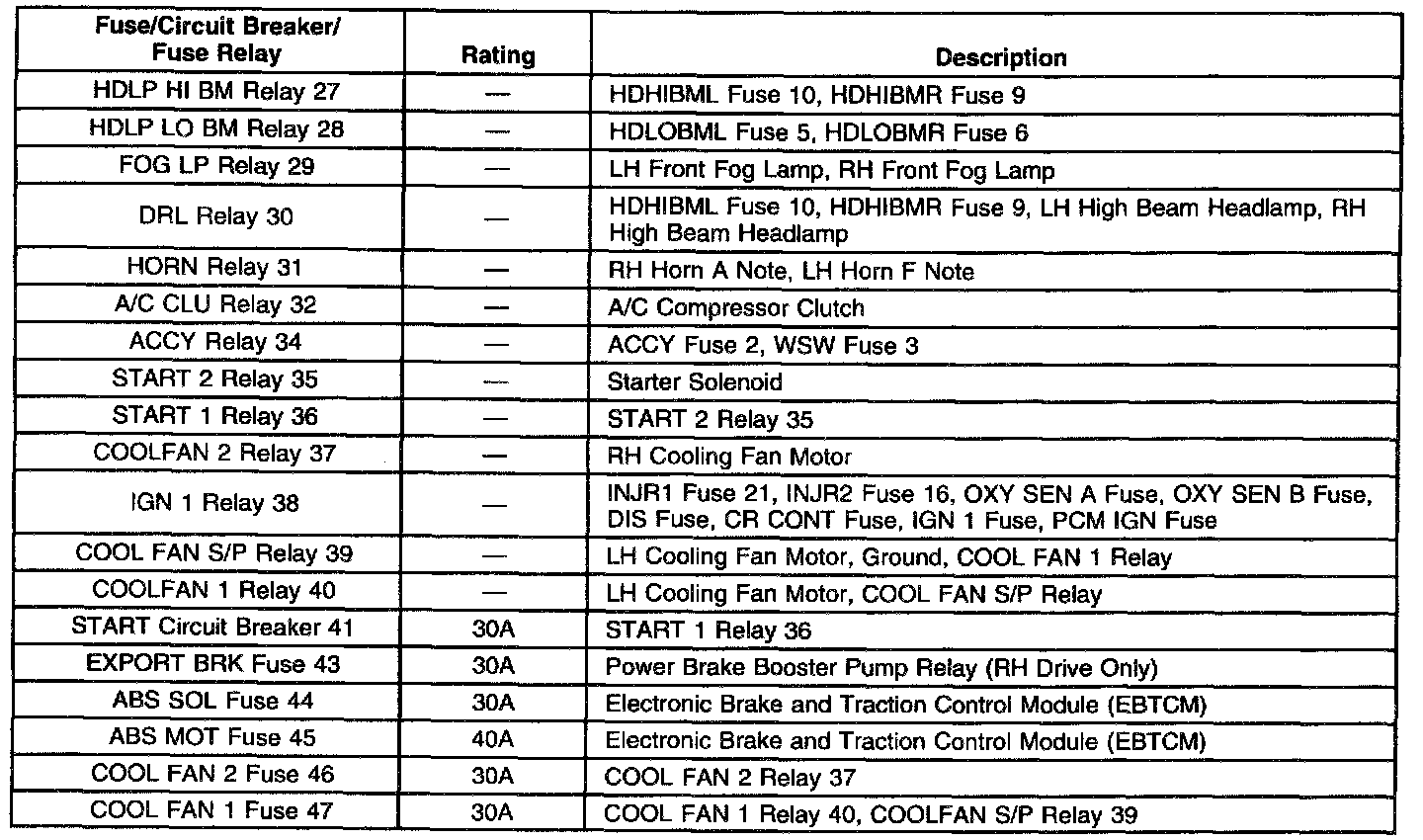

Underhood Junction Block (Part 1 of 2):

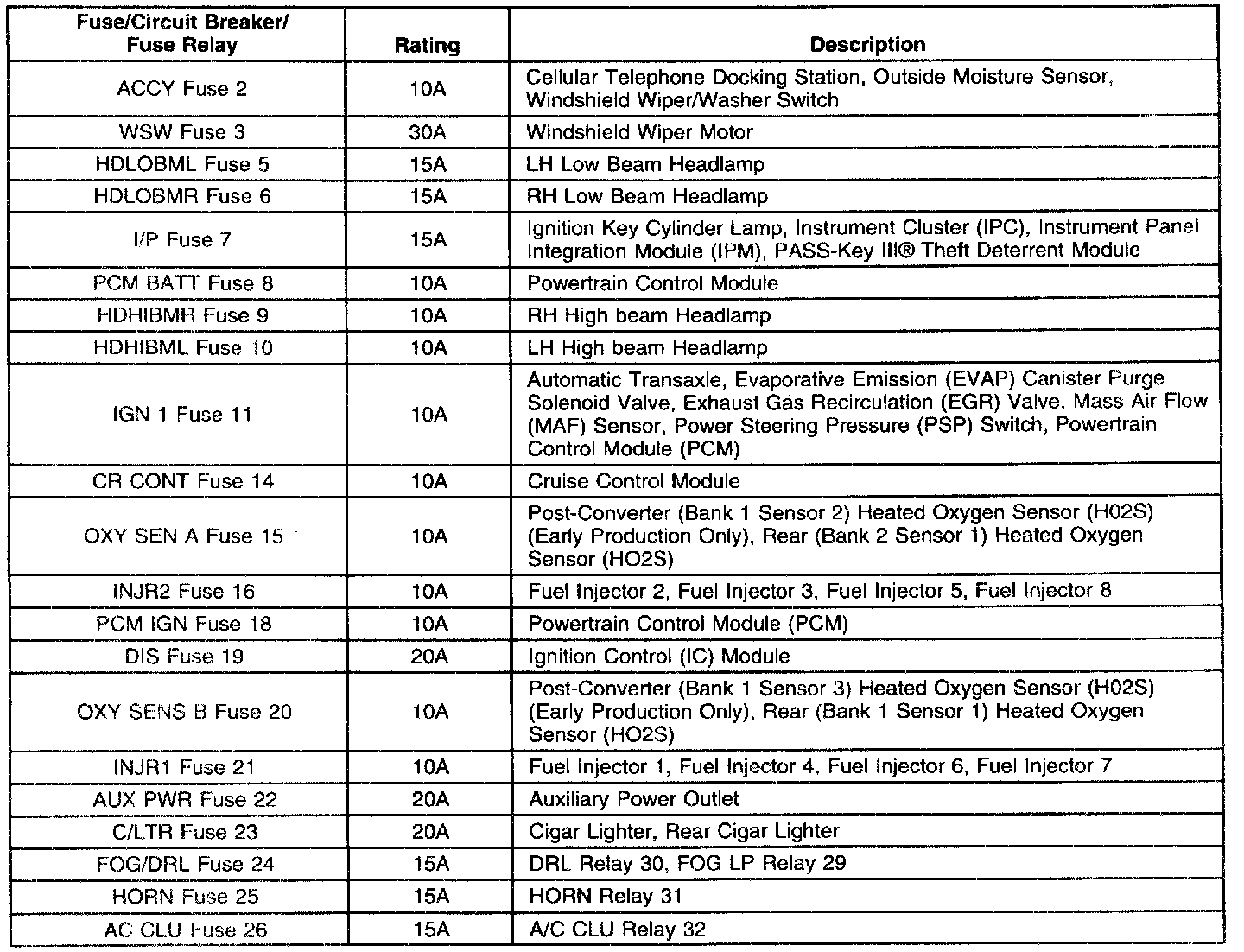

Underhood Junction Block (Part 2 of 2):
