Home
>>
Cadillac
>>
1999
>>
Eldorado V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Heater and A/C Programmer

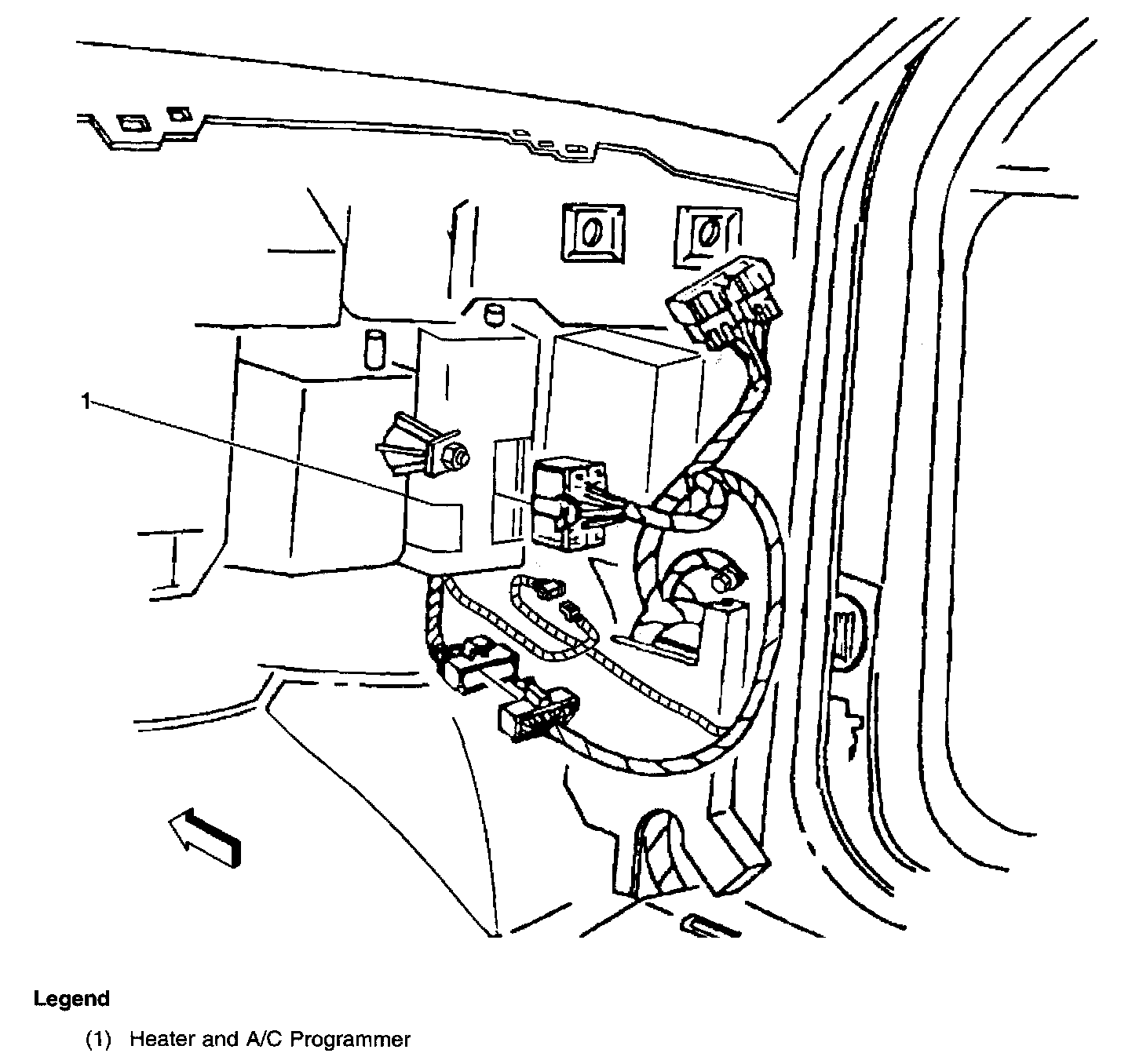

Heater and A/C Programmer
Instrument Panel, Below The Right Side:
Right side rear of the instrument panel, behind the instrument panel compartment
