Heater Temperature Sensor Replacement - HVAC System - Automatic

Heater Temperature Sensor Replacement

REMOVAL PROCEDURE
1. Remove the sound insulators.

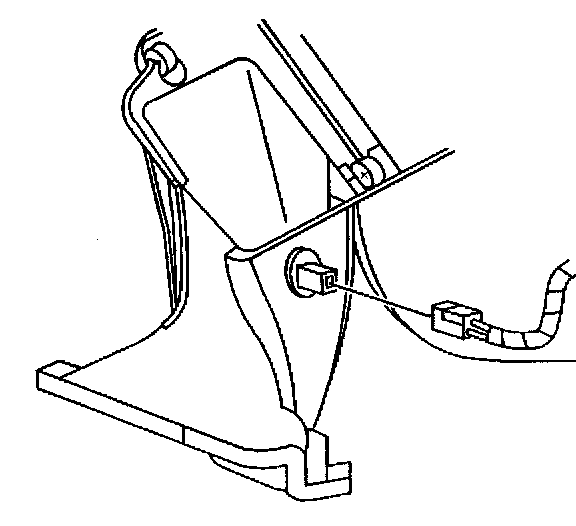

2. Disconnect the electrical connector from the heater temperature sensor.
3. Remove the heater temperature sensor.

INSTALLATION PROCEDURE
1. Install the heater temperature sensor.
2. Connect the electrical connector to the heater temperature sensor.
3. Install the sound insulators.
