EGR Valve: Locations

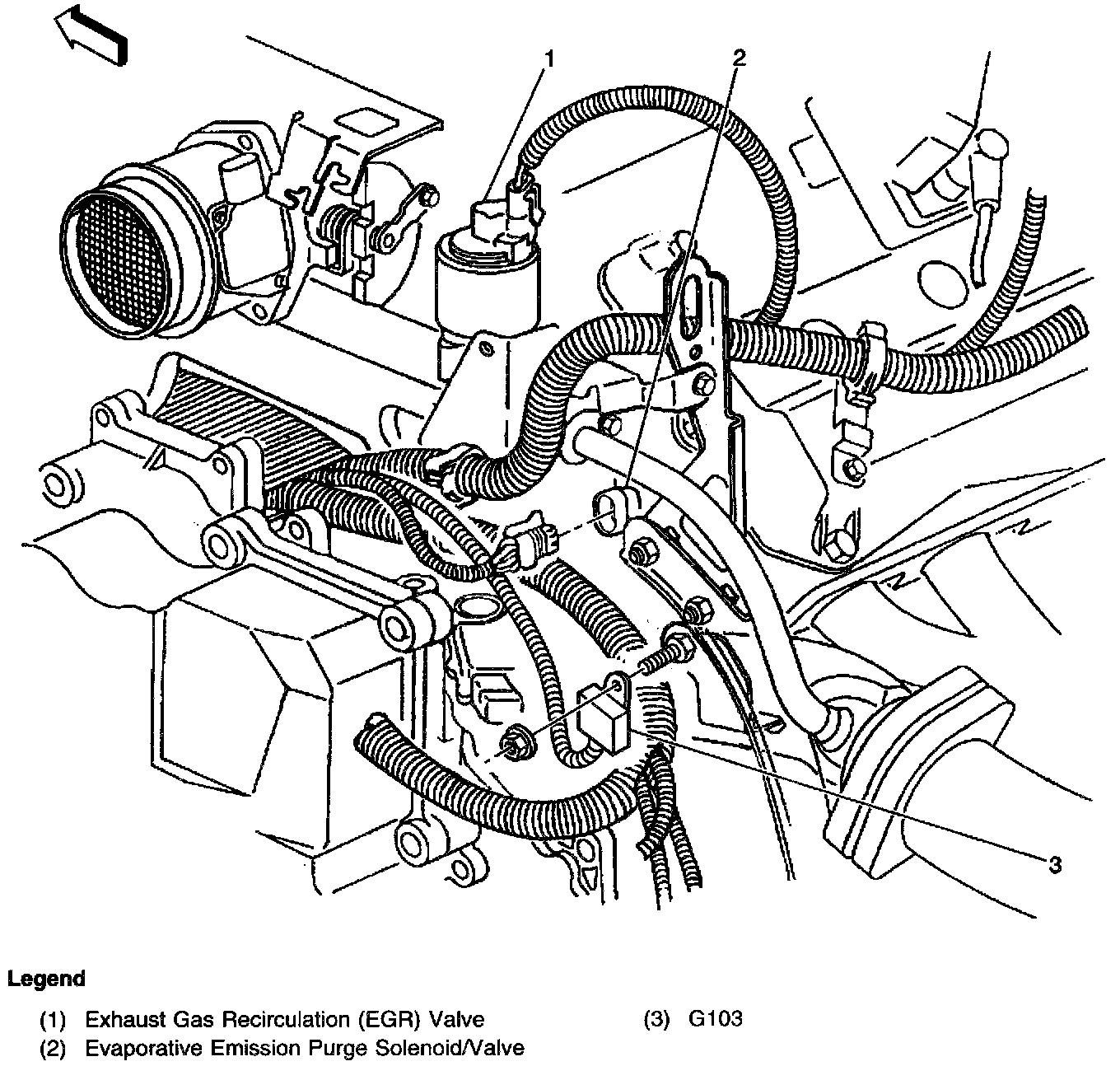

Engine, Left Side:
Description:
Description:

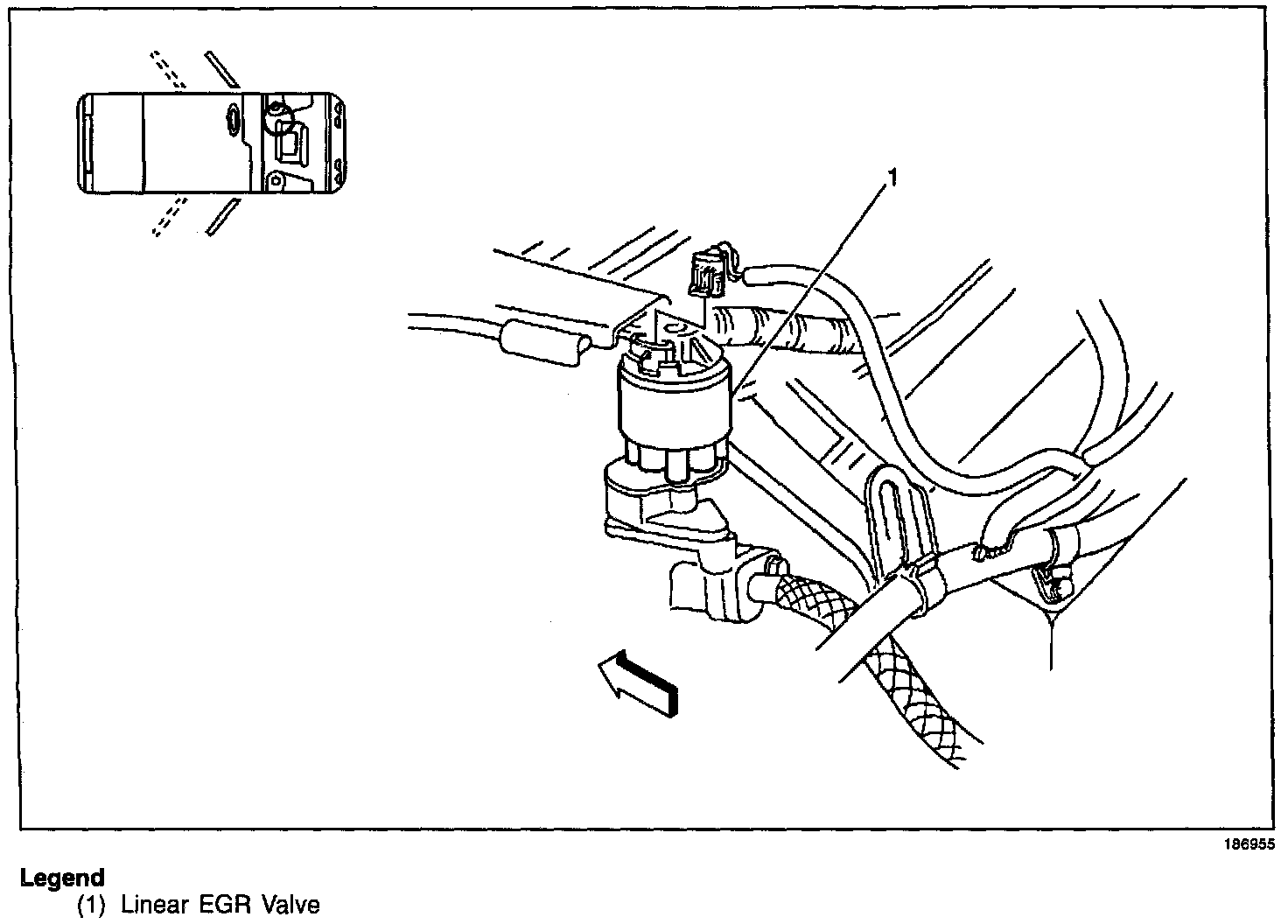

Left rear corner of the engine, near the throttle body
