Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

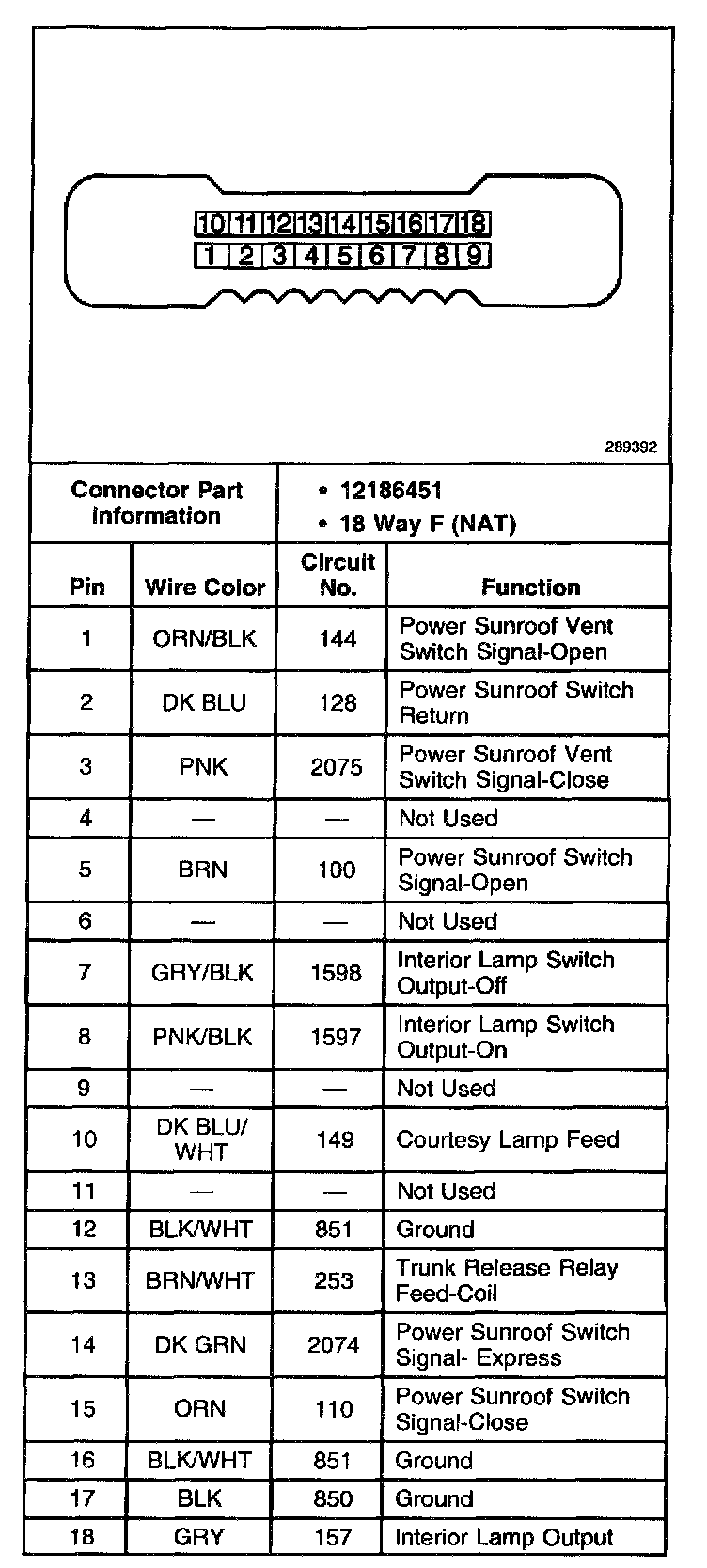

Overhead Console: C1:

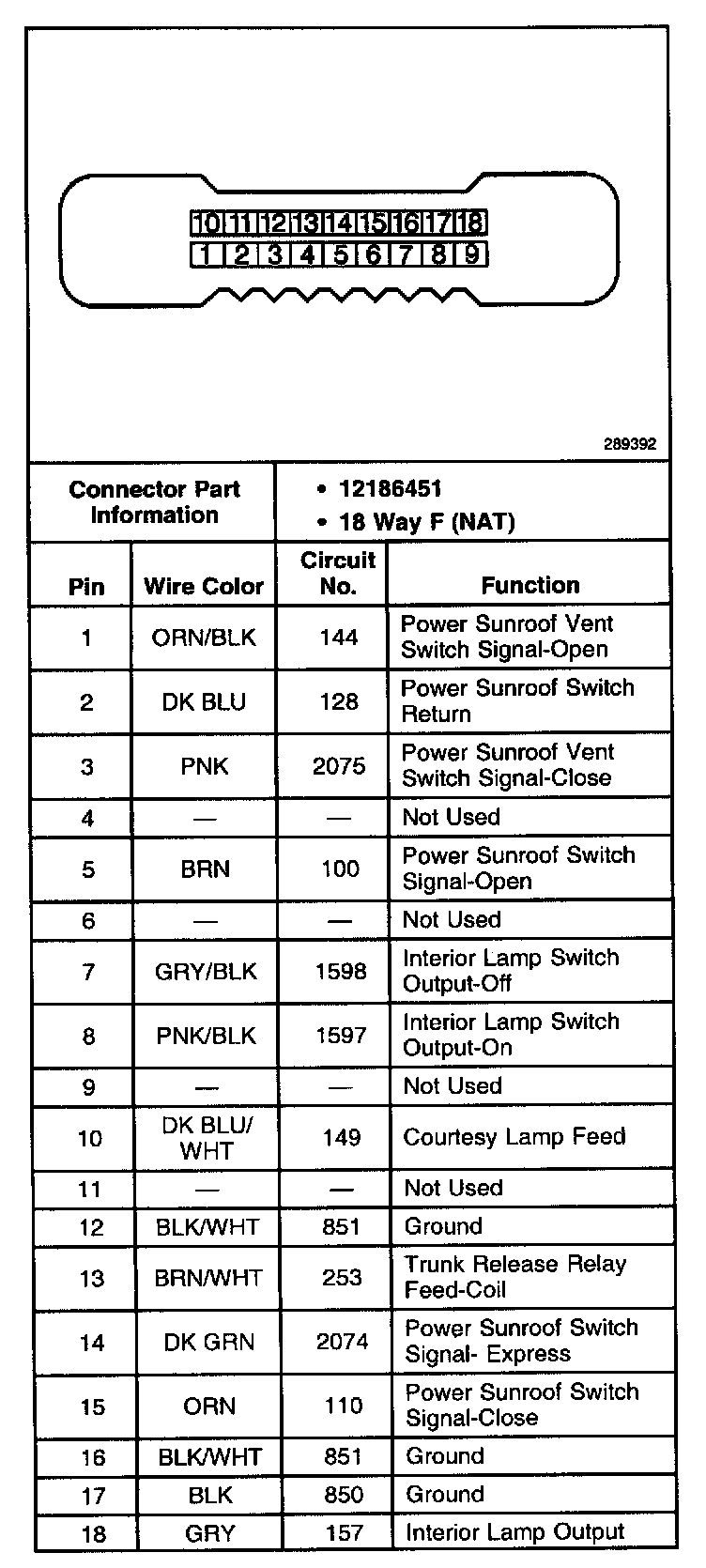

Overhead Console: C1:
