Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Rear Fuse Block: >> C4

C4

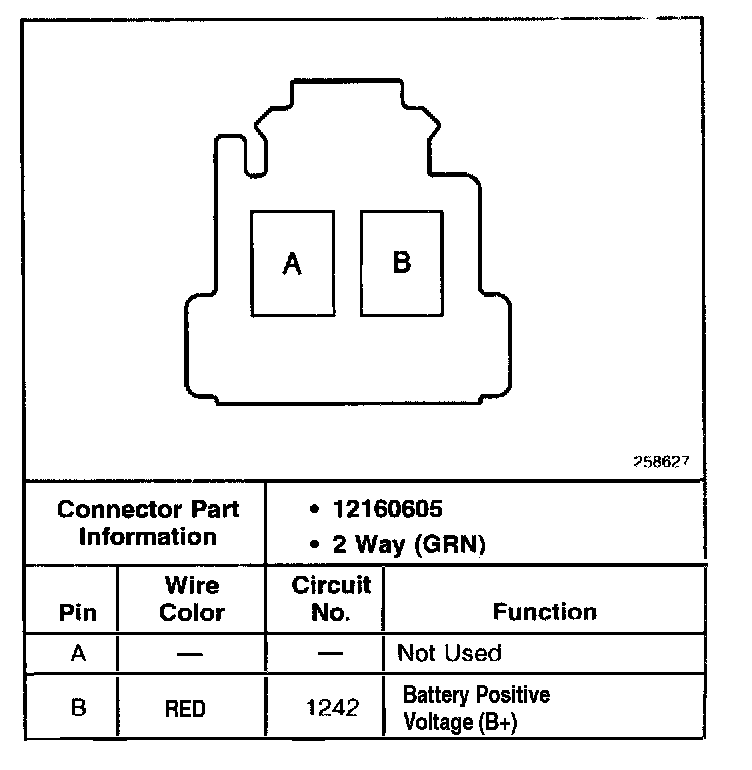

Rear Fuse Block: C4:
