Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (RRDM) C3, RH Rear

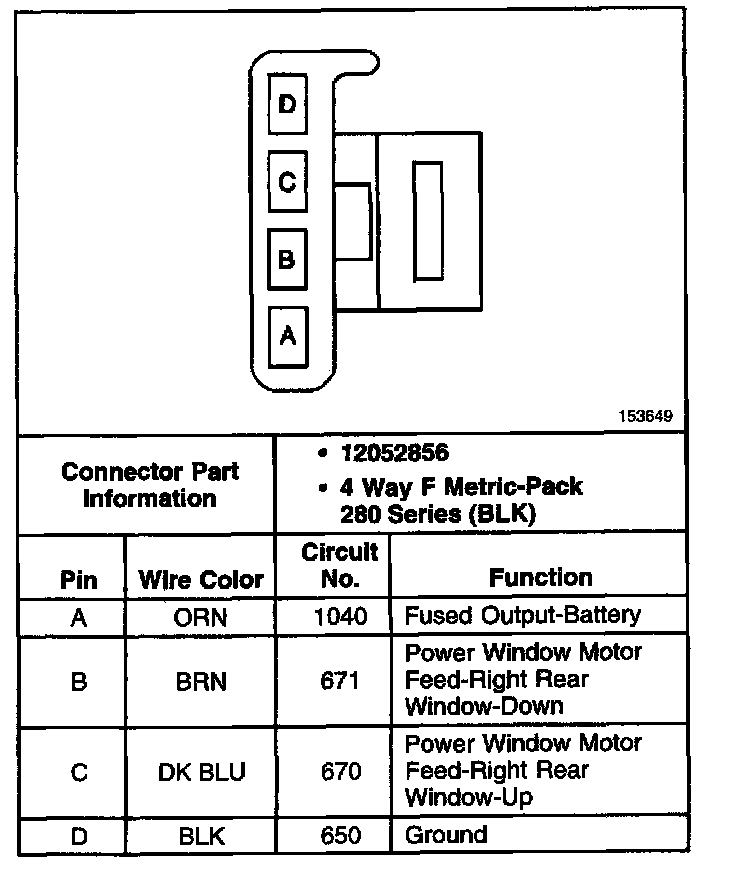

Door Module (RRDM) C3, RH Rear

Door Module (RRDM) C3, RH Rear:
