Impact Sensor
>>
Driver Inflatable Restraint Side Impact Sensor
Driver Inflatable Restraint Side Impact Sensor

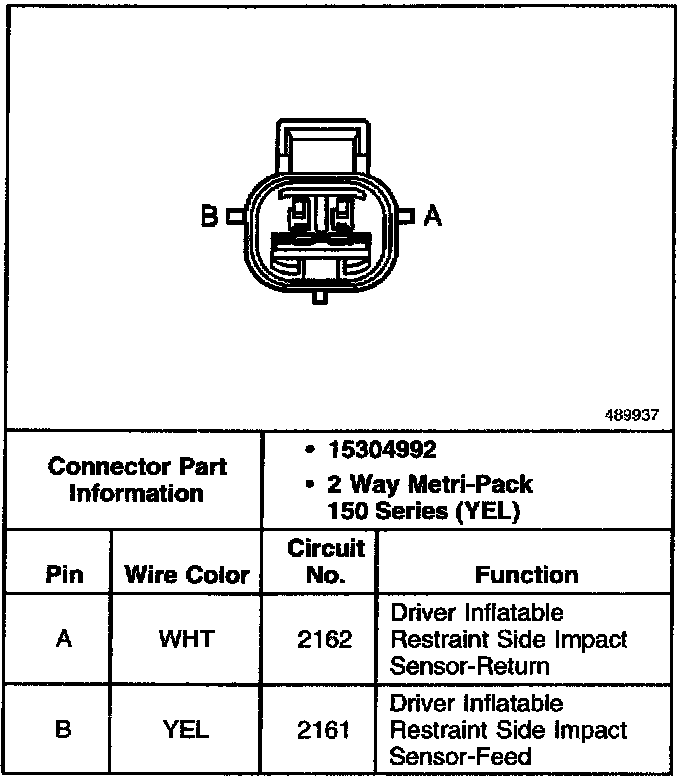

Driver Inflatable Restraint Side Impact Sensor (SIS):
