Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2000
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
System Diagram
>>
Navigation Display Head (NDH)
Navigation Display Head (NDH)

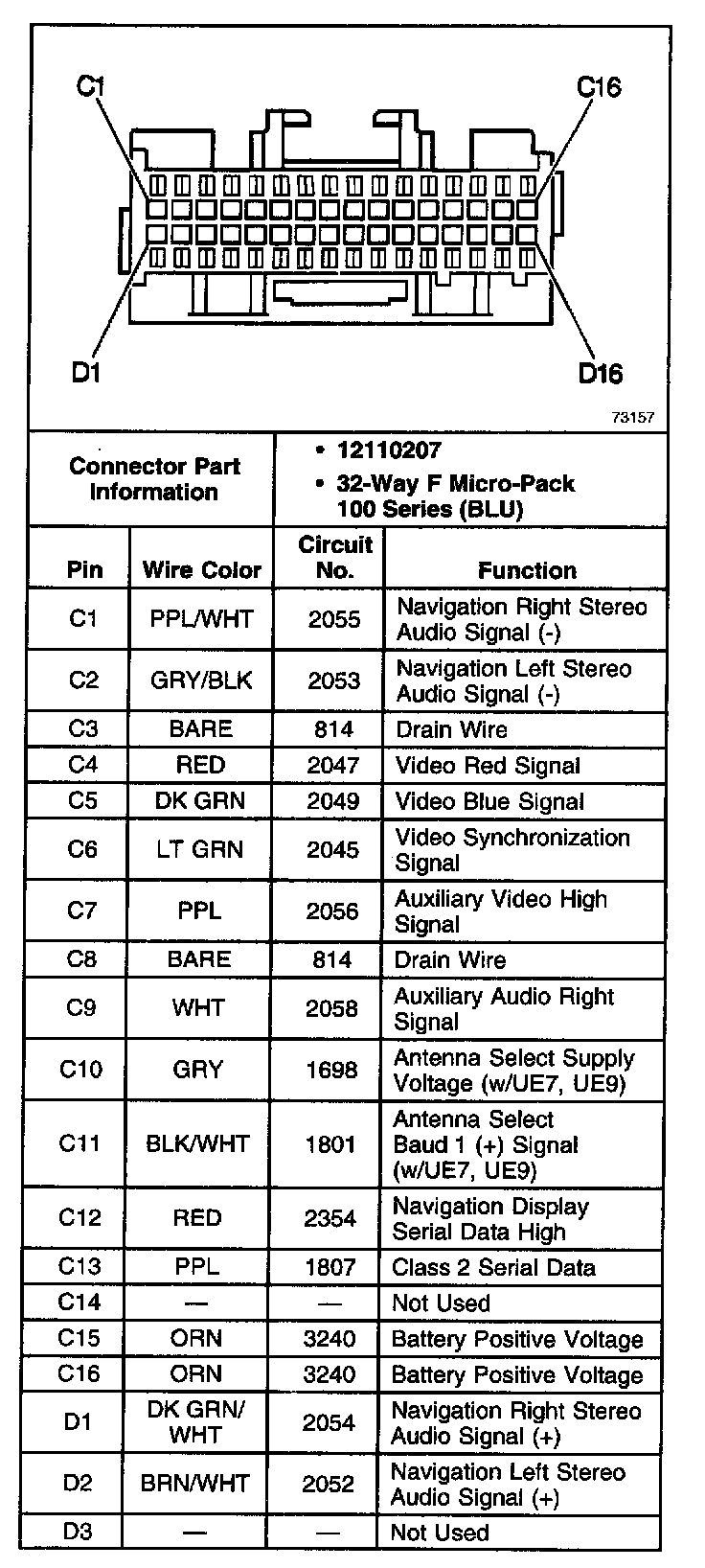

Navigation Display Head (NDH) (Part 1 Of 2):

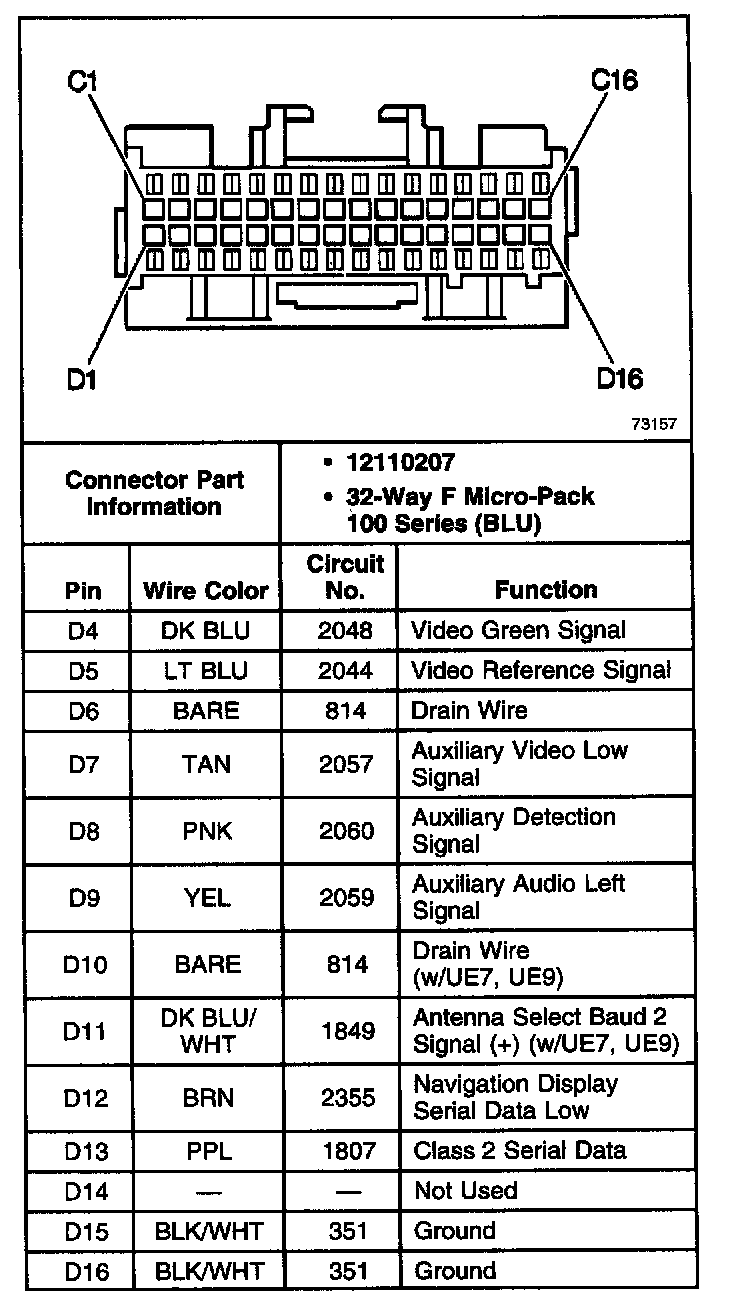

Navigation Display Head (NDH) (Part 2 Of 2):
