Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Solar Sensor, HVAC >> LH Sun Load Sensor

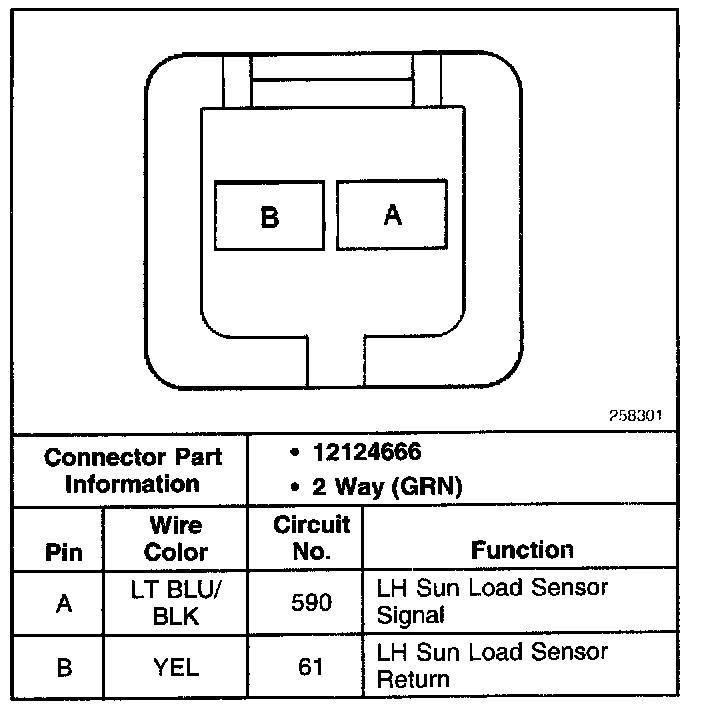

LH Sun Load Sensor

LH Sun Load Sensor:
