Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2000
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
>>

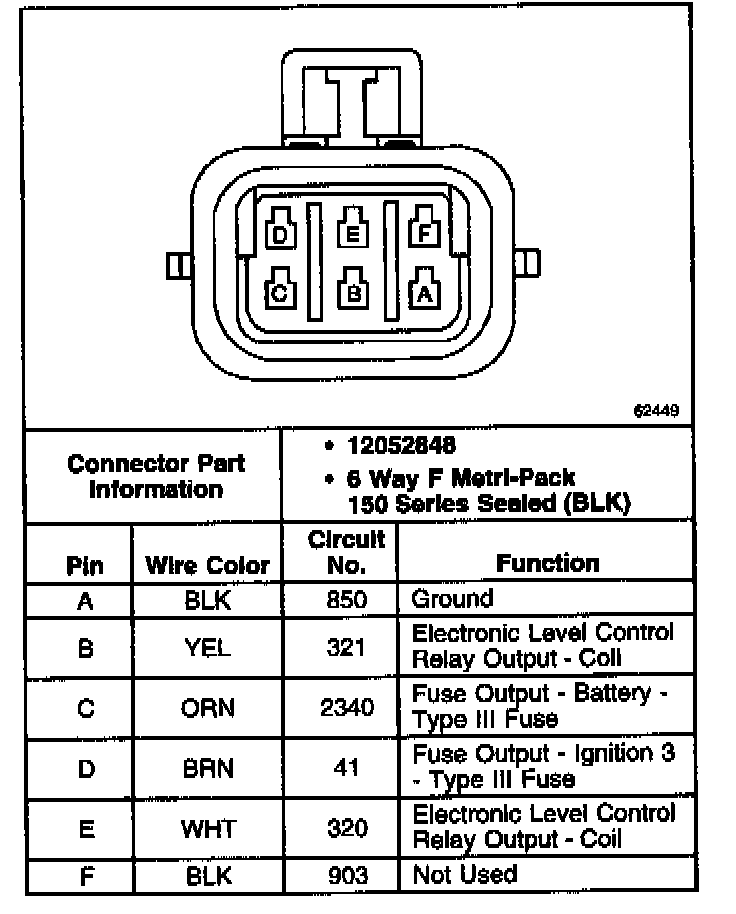

Automatic Level Control Suspension Connector End Views
Automatic Level Control Suspension Connector End Views
