Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Pass-Key RHD

Pass-Key RHD

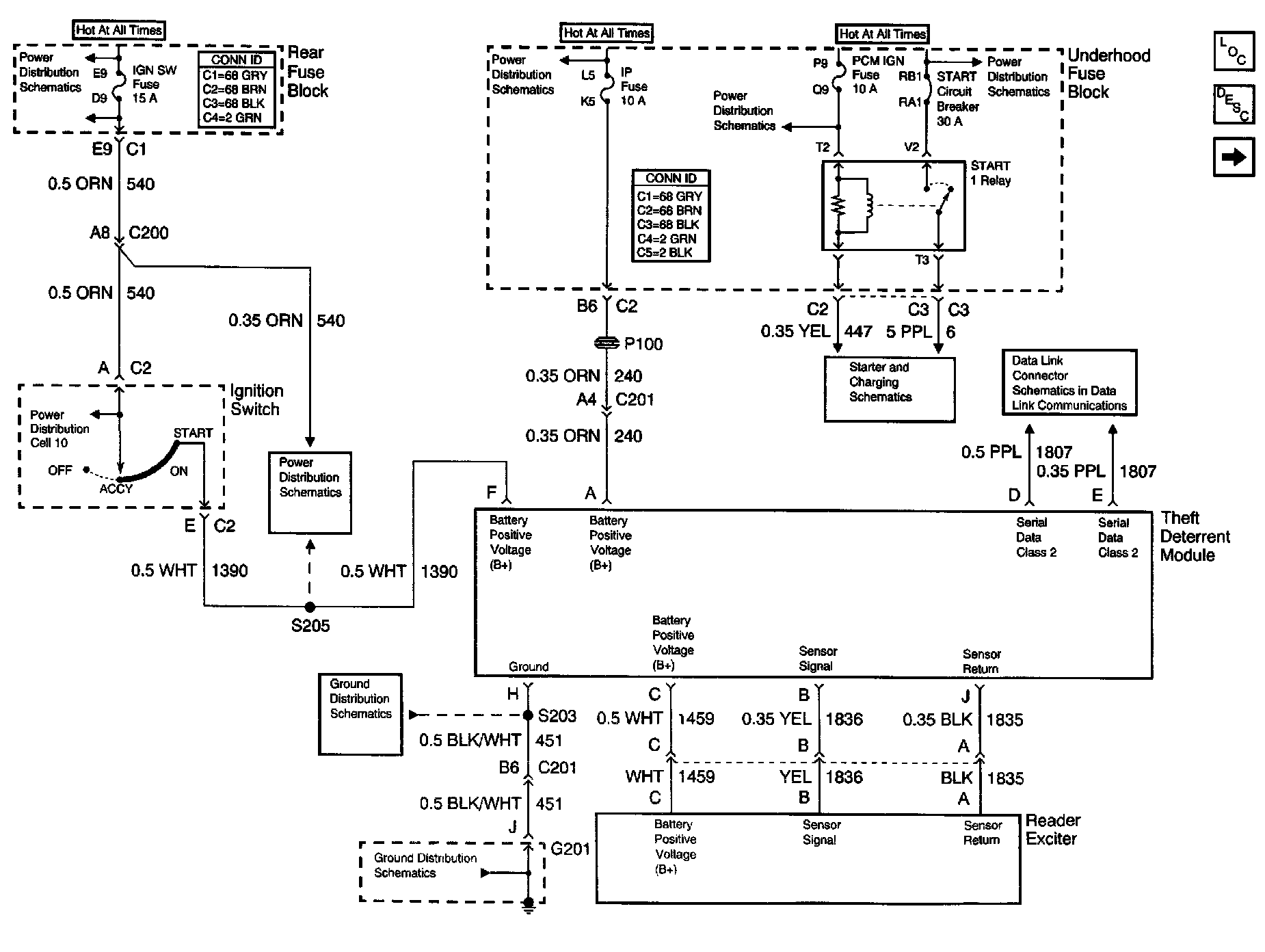

Theft Deterrent System Schematics: Pass-Key RHD:
