Multifunction Lever and Cruise Module Power and Ground
Multifunction Lever and Cruise Module Power and Ground

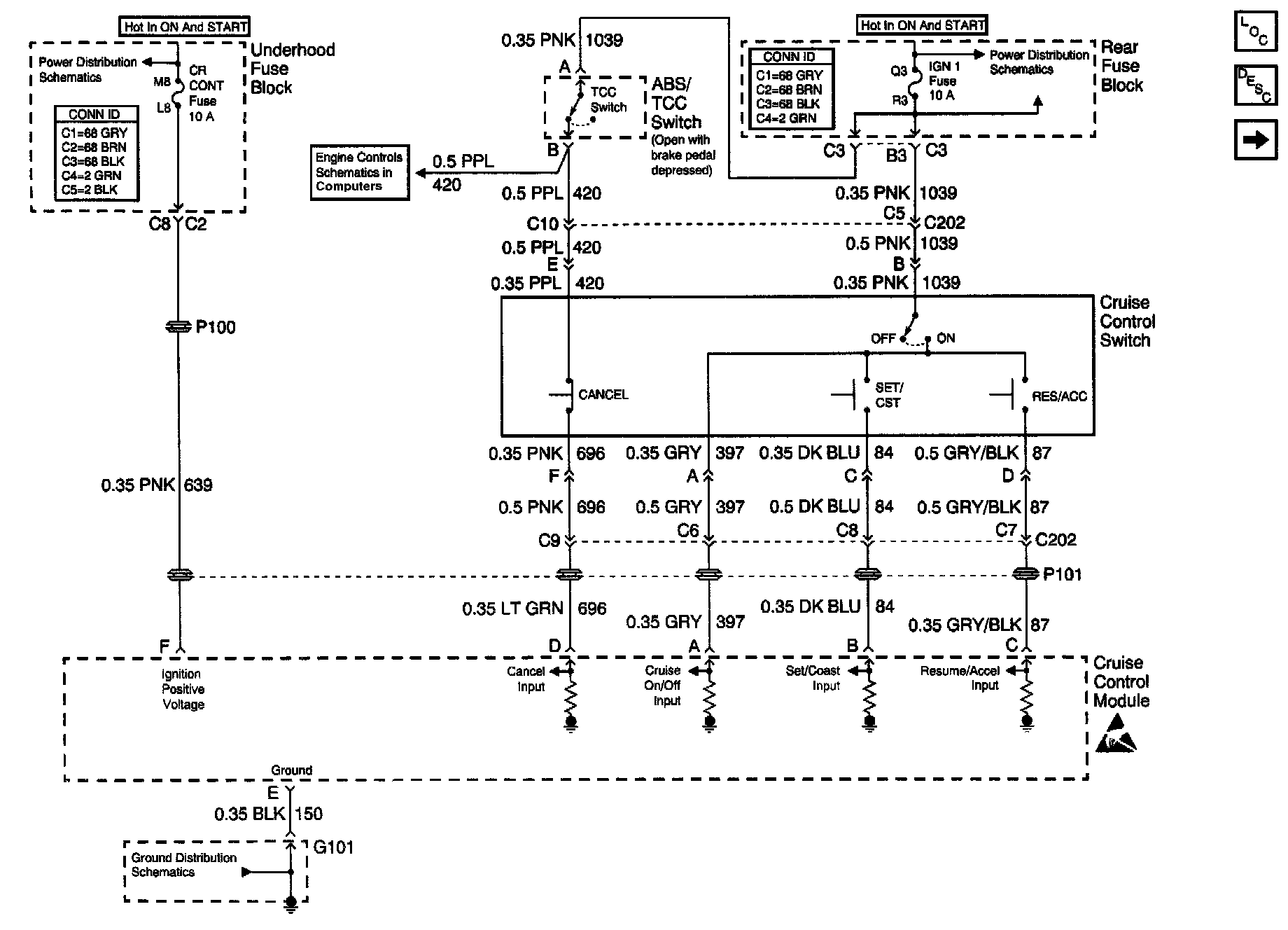

Cruise Control Schematics: Multifunction Lever And Cruise Module Power And Ground:
