LRDM Power, Ground, Inputs, And Outputs
LRDM Power, Ground, Inputs, And Outputs

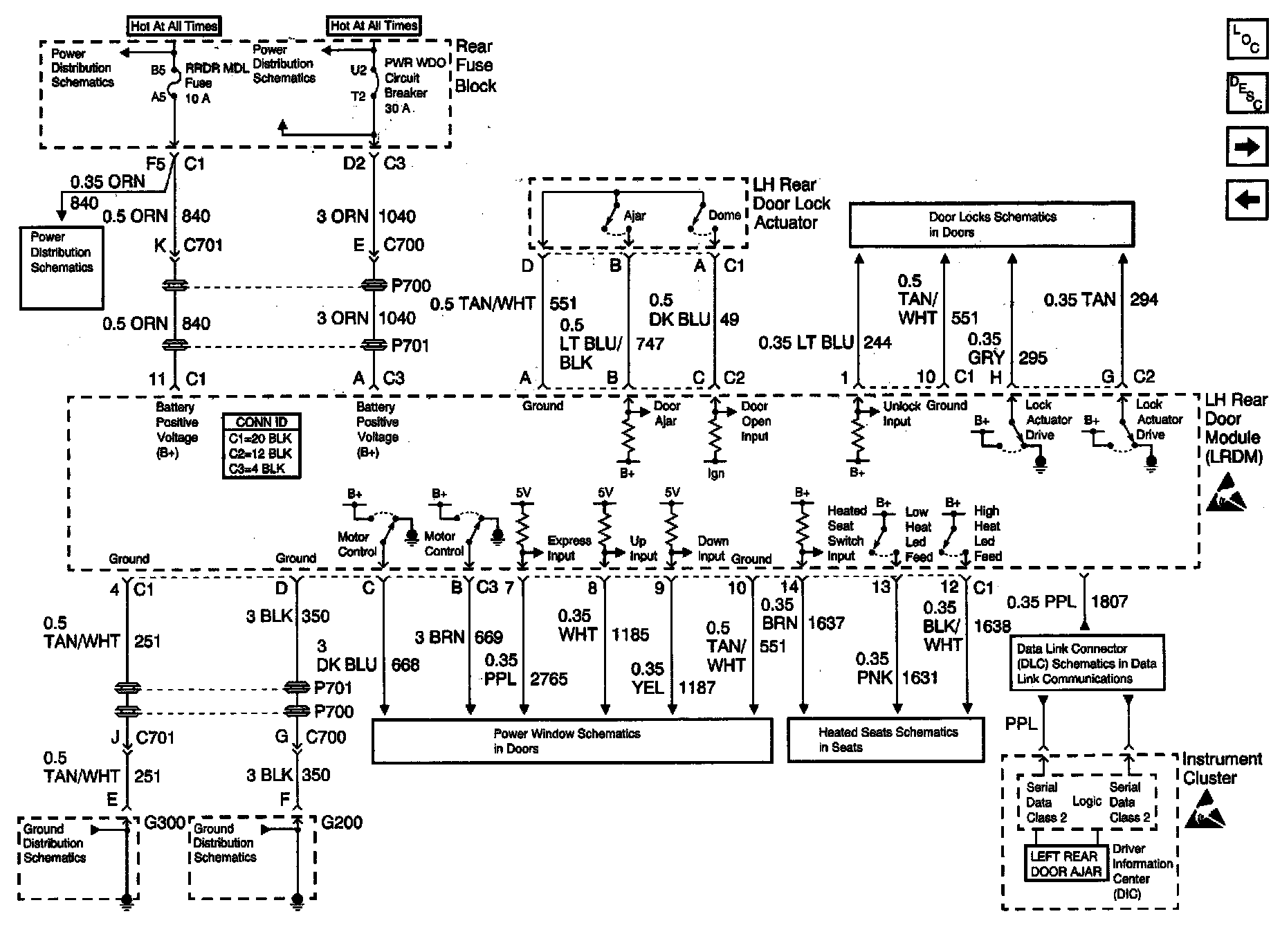

Door Control Module Schematics: LRDM Power, Ground, Inputs, And Outputs:
