RRDM Power, Ground, Inputs, And Outputs
RRDM Power, Ground, Inputs, And Outputs

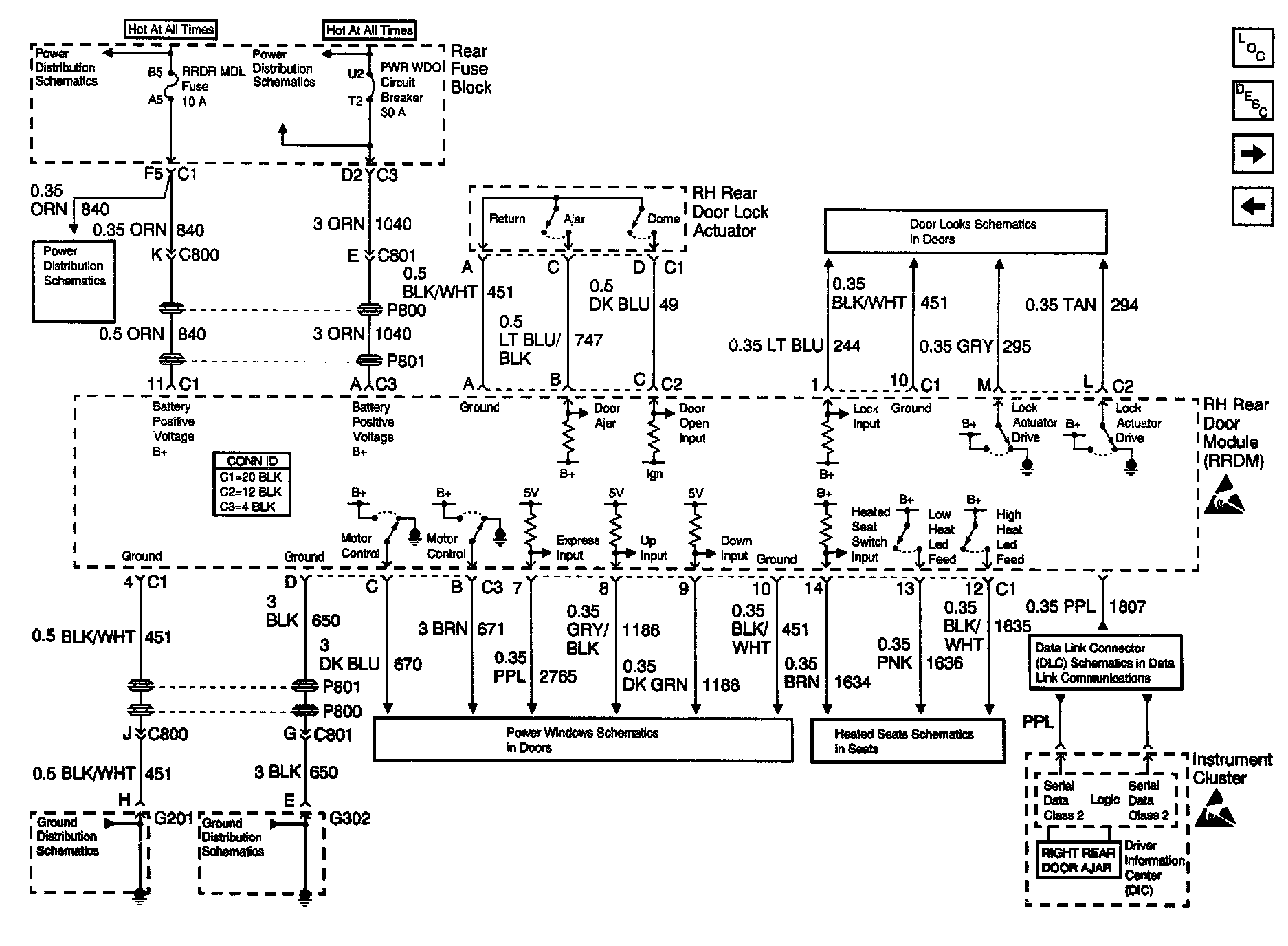

Door Control Module Schematics: RRDM Power, Ground, Inputs, And Outputs:
