Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Memory Seats Schematics >> Memory Function Switch

Memory Function Switch

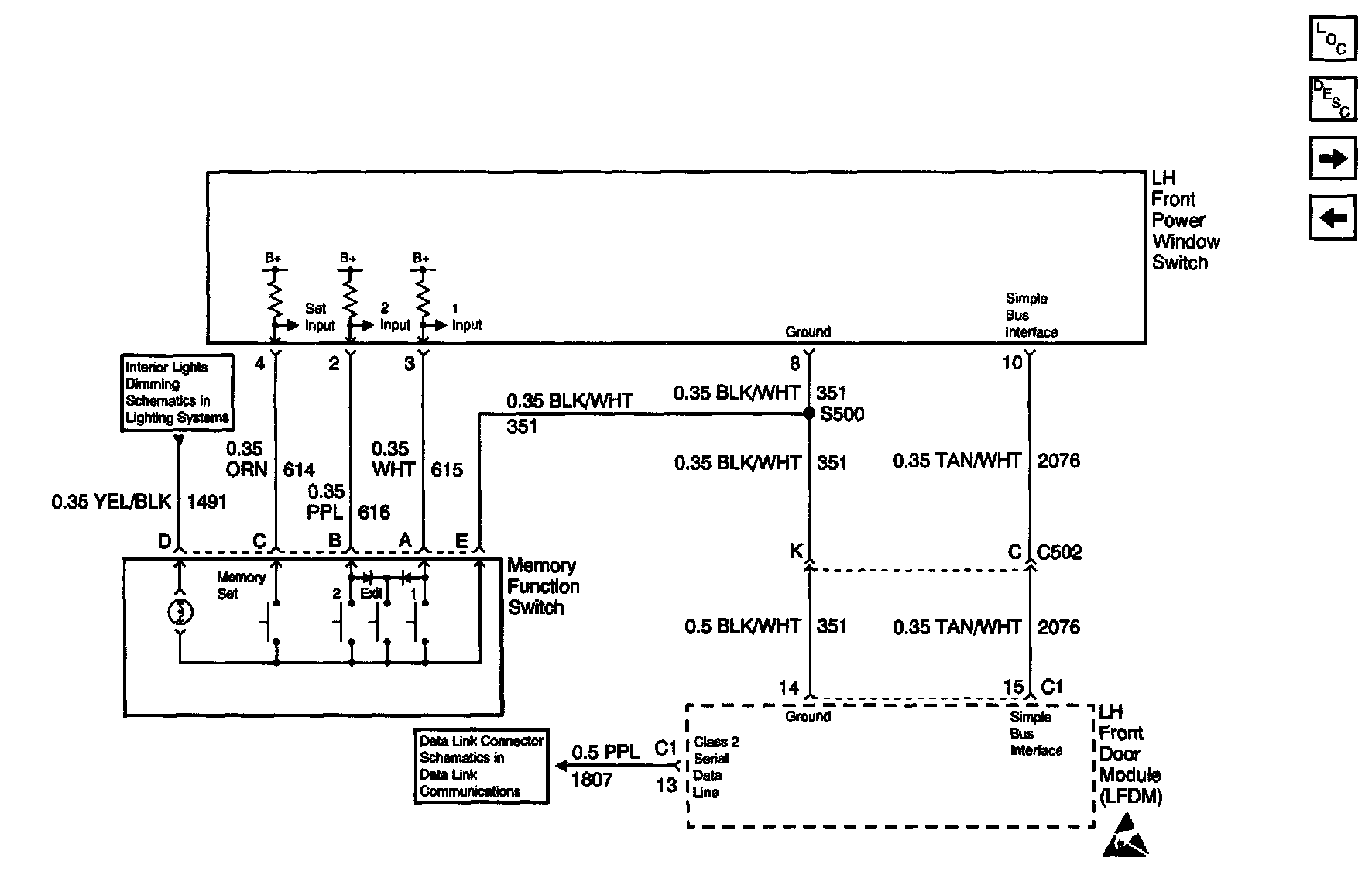

Memory Seats Schematics: Memory Function Switch:

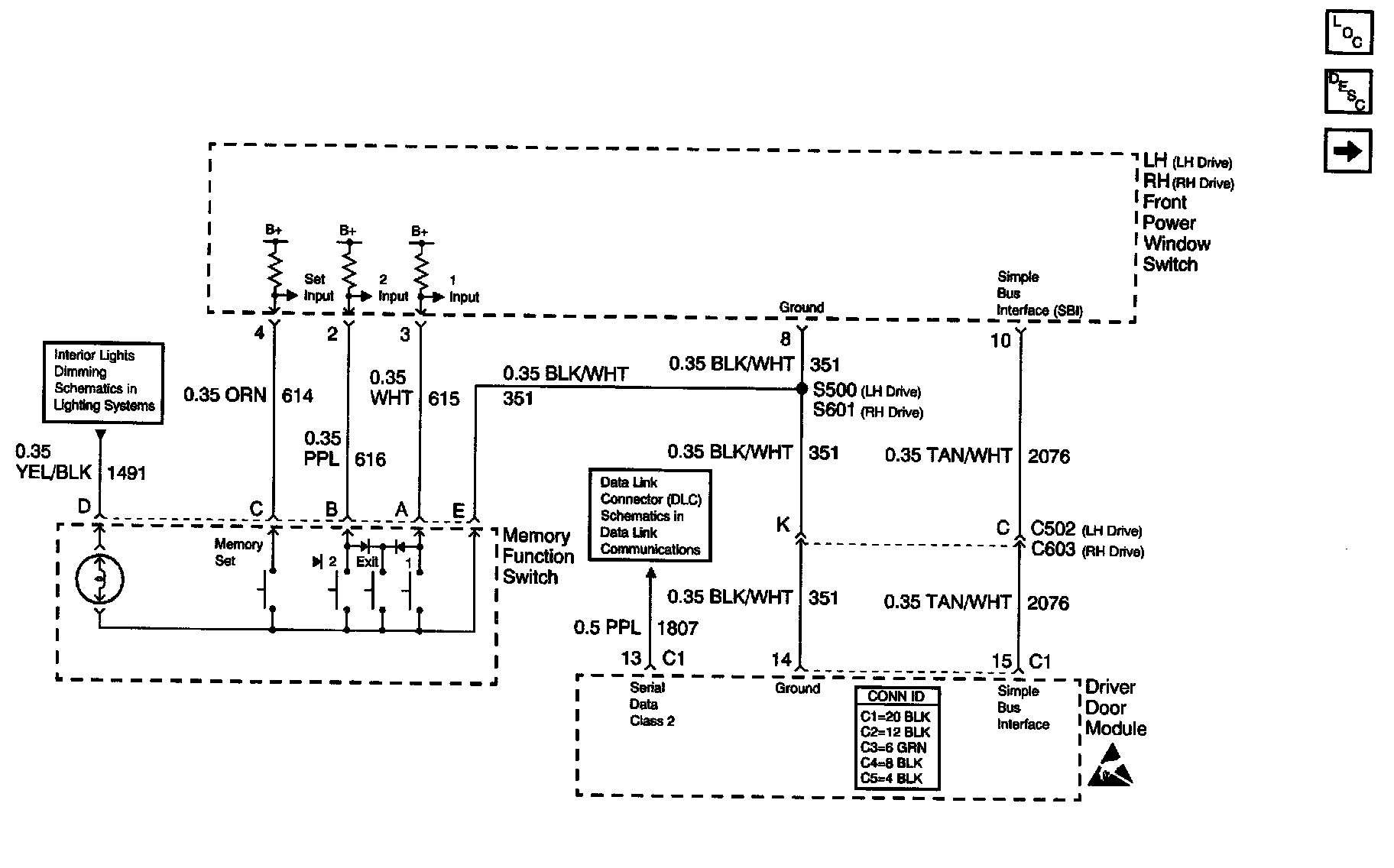

Memory Seats Schematics: Memory Function Switch:
