Underhood Fuse Block

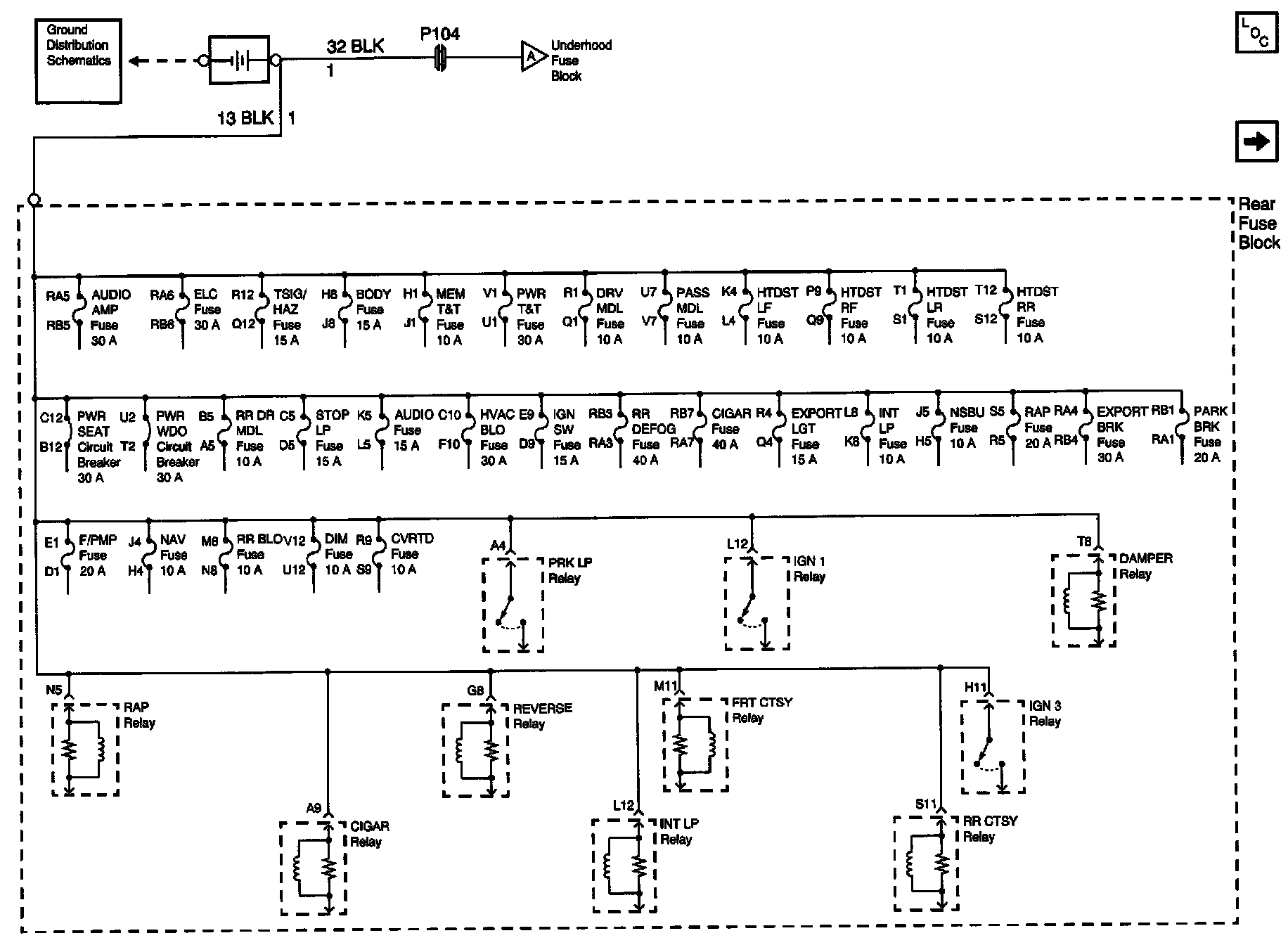

Power Distribution Schematics: Battery Feeds:

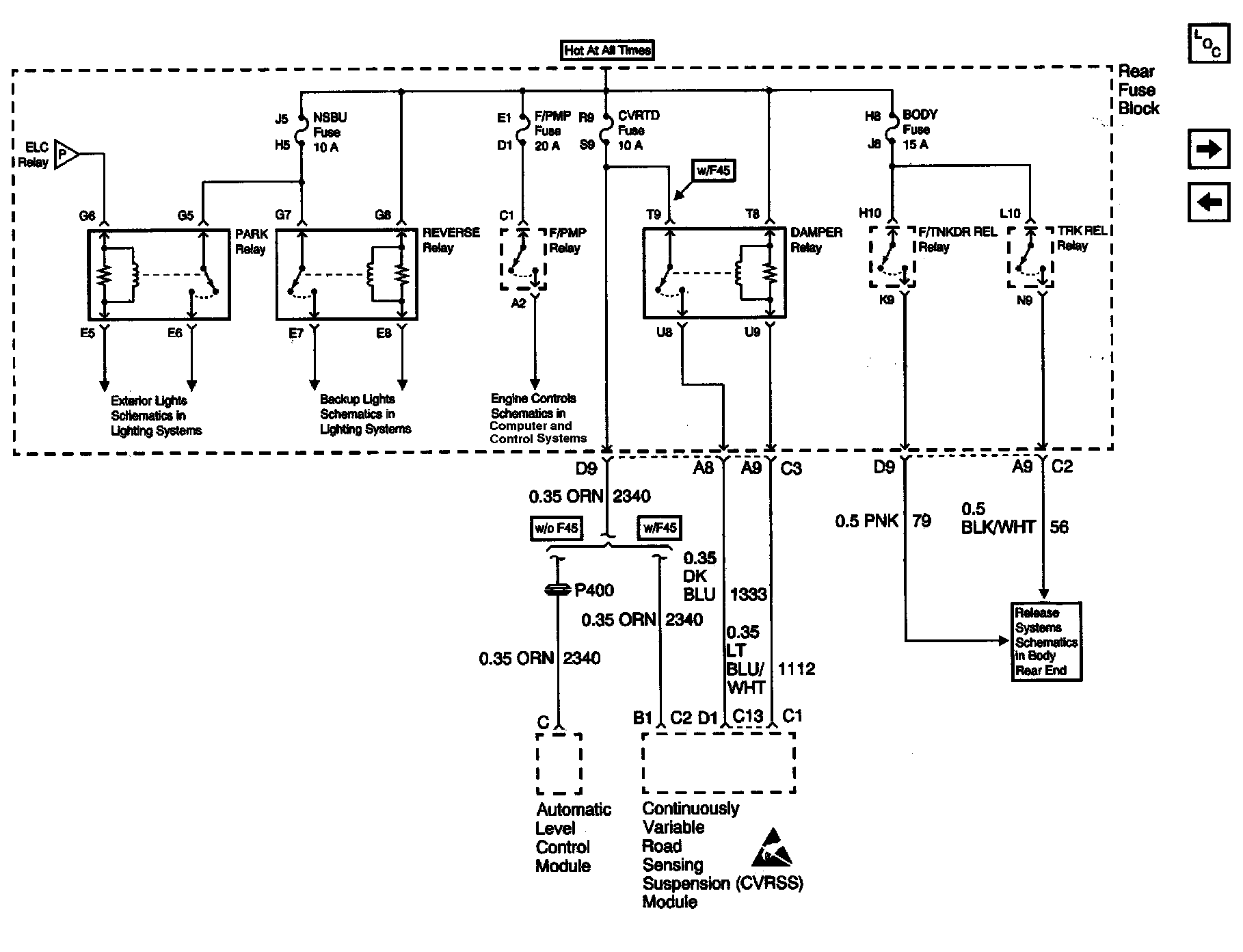

Power Distribution Schematics: NSBU, F/PMP, CVRTD and BODY Fuses:
