12. Water Crossover Removal

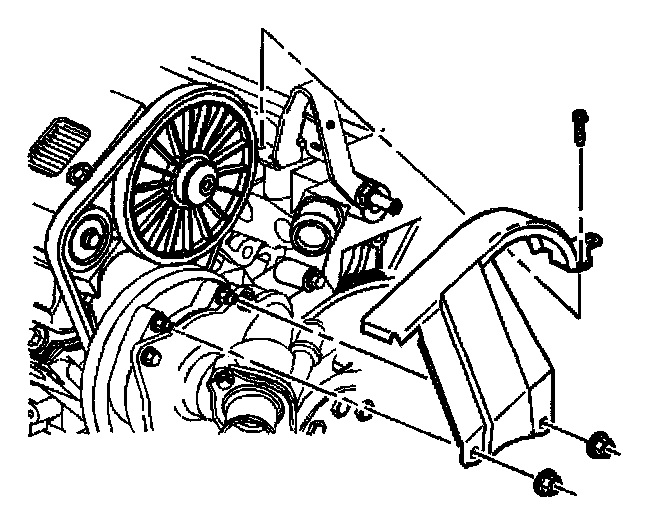

1. Remove the water pump drive belt shield bolt and nuts.
2. Remove the water pump drive belt shield.

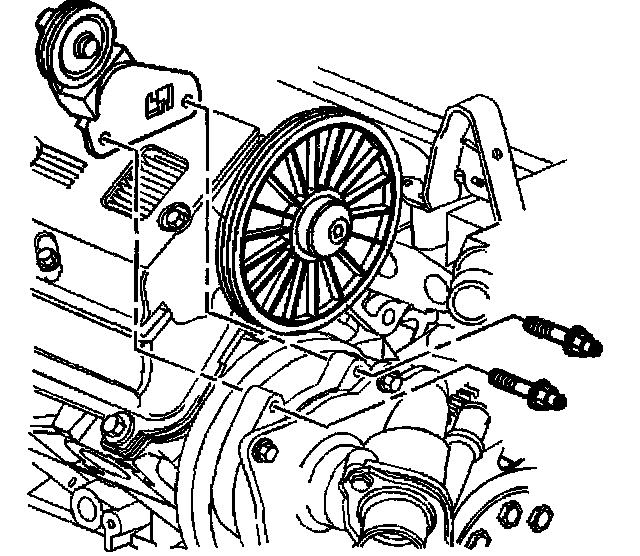

3. Remove the water pump drive belt by compressing the belt tensioner while sliding the belt off the drive pulley and the water pump pulley.





4. Remove the water pump drive belt tensioner bolts from the tensioner.

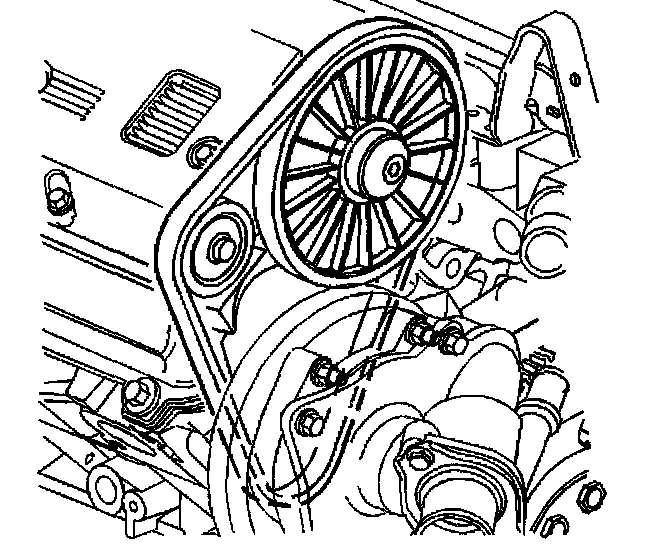

5. Remove the water pump drive belt tensioner from the water crossover.





6. Loosen the water crossover mounting bolts.
7. Remove the water crossover and all mounting bolts.





8. Remove the water crossover gaskets.
